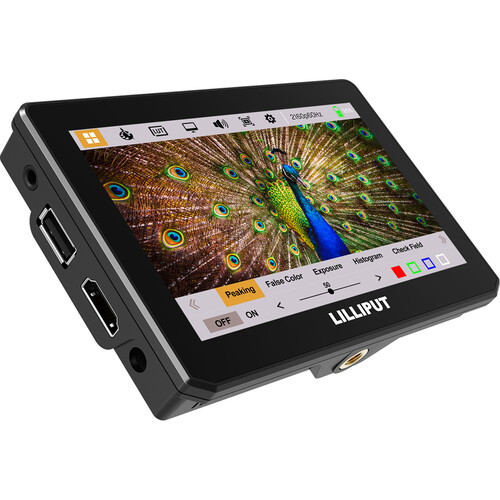

Lilliput 5inch Touch On-Camera HDMI Monitor
- 5″ 1920 x 1080 LCD Touchscreen Display
- HDMI 2.0 Input Supports DCI & UHD 4K, HD
- Supports HDR
- سطوع 400 شمعة/م²
9,350 جنيه مصري
التسليم خلال 2-4 أيام
Lilliput T5 Overview:
Compact, lightweight, and well suited for on-set work, the Lilliput 5″ Touch On-Camera HDMI Monitor can handle DCI and UHD 4K as well as 1080p, 1080i, and 720p signals via its HDMI input. The monitor scales input video to its 1920 x 1080 IPS screen that provides you with a 1000:1 contrast ratio, 400 cd/m² maximum brightness, and a touchscreen interface.
A push-button power switch and five buttons sit along the top of the monitor providing access to the on-screen menu system. The IPS LCD touchscreen has a 170° angle of view, side-to-side and top-to-bottom, and allows you to control and adjust the monitor using capacitive touch control. The monitor supports image and camera-related display tools that help ensure your images are in focus and properly exposed. Three 1/4″-20 threaded mounting holes enable mounting the monitor on your camera in a variety of positions.
Function Buttons
Touchscreen
المهام
The monitor supports the following:
- Audio level display
- Histogram
- False color
- User settable markers
- Focus peaking
- Zebra bars
- Check field
- Aspect ratio
- تكبير
- 3D LUT import (through the USB port)
- HDR
- Pixel zoom
- H/V delay
- Image flip
- One-to-one pixel
- Freeze frame
LUTs
| Panel Type | IPS-Type LCD |
|---|---|
| حجم العرض | 5.0" / 12.7 cm |
| دقة | 1920 x 1080 |
| ابعاد متزنة | 16:9 |
| Viewing Angle | Horizontal: 170° Vertical: 170° |
| Touchscreen | نعم |
| Maximum Brightness | 400 cd/m2 |
| Pixels Per Inch (ppi) | 440 ppi |
| Real-Time LUT Monitoring | 1 x HDMI 2.0 Input |
| Embedded Audio | HDMI: 8-Channel |
| إدخال/إخراج الصوت | 1 x 1/8" / 3.5 mm Headphone Output |
| الإدخال/الإخراج الأخرى | 1 x USB-A 2.0 Input |
| قوة الإدخال/الإخراج | 1 x Barrel 5.5 mm (8 VDC) Output |
| Built-In Speaker | لا يوجد |
| فتحة لبطاقة الوسائط/الذاكرة | لا يوجد |
| واي فاي | لا يوجد |
| شكل الفيديو | HDMI DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 |
| طاقة الإدخال بالتيار المستمر | 7 to 24 VDC |
| استهلاك الطاقة | 12 W (Maximum) |
| تصاعد | 3 x 1/4"-20 Female |
في الصندوق
- Lilliput 5″ Touch On-Camera HDMI Monitor
- كابل اتش دي ام اي
- Mini Cold Shoe Adapter
- Sunshade Mounting Frame
- Sunshade
