Samson Concert 88 Camera Lavalier Frequency-Agile UHF Camera Wireless System – K: 470 To 494 MHz

Samson
دلائل الميزات :
  • For Broadcast, Film, ENG, and Video
  • Diversity Camera-Mount Receiver
  • Wireless Bodypack Transmitter
  • LM10 Omnidirectional Lavalier Microphone
  • 16 Selectable Frequencies
  • Easy to Use, Simple Setup
  • Headphone Output for Monitoring
  • Up to 8 Mics on Set / 300′ Range

22,000 جنيه مصري

  التسليم خلال 2-4 أيام

Samson SWC88XVBLM10-K Overview:

ال Concert 88 Camera Lavalier Frequency-Agile UHF Camera Wireless System من شمشون includes a CR88V micro wireless receiver, a CB88 beltpack transmitter, and an LM10 omnidirectional lavalier microphone. This system can be used to accommodate a wide range of filming applications such as video, journalism, home video, multimedia, and ENG (electronic news gathering) with audio quality for your productions.

Featuring 16 selectable frequencies over a 25 MHz bandwidth, the Concert 88 system delivers reliable, interference-free performance in any location. The receiver offers 12 hours of battery life from a single removable lithium-ion rechargeable battery. Two batteries are included to allow for quick changes and to limit downtime when the battery level is low. The receiver mounts directly onto a camera with a cold shoe mount or you can clip it on a shoulder strap.

Furthermore, the Concert 88 Camera operates in the UHF frequency band with a 300′ wireless range. Audio reaches the CR88V receiver via the beltpack transmitter with the LM10 omnidirectional lavalier microphone. The transmitter will run up to eight hours using two AA batteries (not included). Finally, the transmitter feature a variable gain control and a popless one-touch mute button.

Concert 88 Camera System
  • Up to eight simultaneous systems per frequency band (region dependent)
  • 16 selectable frequencies for multilocation shoots
  • Includes two rechargeable lithium-ion batteries
  • Protective carry case

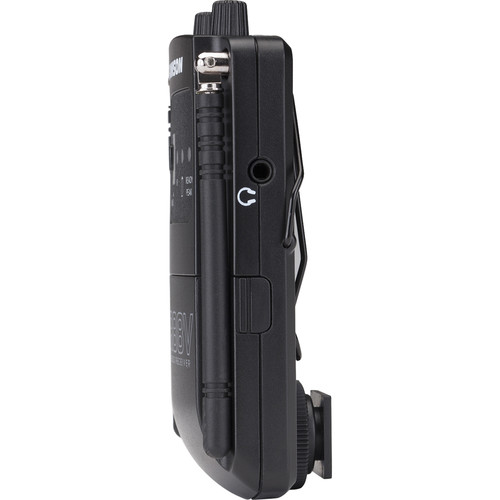

CR88V Micro Wireless Receiver
  • Up to 12 hours of battery life using single removable lithium-ion battery
  • Battery-level indicator
  • IR sync wirelessly matches receiver and transmitter frequency
  • 3.5mm output with level control
  • Includes 3.5mm and XLR output cables
  • Independent 3.5mm headphone monitor output with level control
  • Tone-key technology prevents interference
  • Removable shoemount adapter attaches receiver to camera
  • Belt clip for strap mounting
CB88 Beltpack Transmitter
  • LM10 omnidirectional lavalier microphone
  • Up to eight hours of battery life using two AA batteries (not included)
  • 300′ operating range (line-of-sight)
  • Variable gain control
  • One-touch mute
  • Metal belt clip
Wireless Technology

التناظرية ذات التردد فوق العالي

Number of RF Channel Frequencies

16

Included Transmitters

1 x Bodypack with Microphone

RF Frequency Band

K: 470 to 494 MHz

Diversity

True Diversity

Max Operating Range

300' / 91.4 m (Line of Sight)

Max Transmitters per Band

8

النطاق الديناميكي

>100 dBA

Encryption

نعم

Pilot Tone

32.768 kHz

Receiver Type

Camera-Mount

Mounting Options

Belt Clip, Shoe-Mount

Audio Output Level

+9 dBu

Impedance

1/8" / 3.5 mm Outputs: 1 Kilohms (Unbalanced) 16 Ohms (Unbalanced)

Number of Audio Channels

1

Internal Battery Capacity

1050 mAh

Receiver Dimensions

4.3 x 2.5 x 0.9" / 109.2 x 63.5 x 22.9 mm

Receiver Weight

3.2 oz / 92 g

إدخال/إخراج الصوت

1 x TA3/Mini XLR 3-Pin Male Input (Lockable)

استجابة التردد

50 Hz to 15 kHz (Dependent on Mic)

Antenna

1 x Flexible Whip, Fixed (Beltpack)

Display & Indicators

1 x LED (Battery Status, Mute)

Transmitter Dimensions

3.8 x 2.4 x 0.7" / 96 x 62 x 18.5 mm

Transmitter Weight

3.3 oz / 93 g

Frequency Range

20 هرتز إلى 20 كيلو هرتز

Maximum SPL

140 dB SPL

Sensitivity

-43 dB at 1 kHz

النواتج

1 x TA3/Mini XLR 3-Pin Female (Lockable)

Cable Length

3.94' / 1.2 m

Operating Voltage

1.5 to 12 V

Diameter

0.14" / 3.5 mm

الوزن

0.46 oz / 13 g

في الصندوق

  • Samson Concert 88 Camera Lavalier Frequency-Agile UHF Camera Wireless System (K: 470 to 494 MHz)
  • LM10 Lavalier Microphone
  • Locking 3.5mm to 3.5mm Output Cable
  • Locking 3.5mm to XLR Output Cable
  • 2 x Lithium-Ion Rechargeable Batteries
  • USB External Battery Charger/Cable
  • حقيبة حمل
