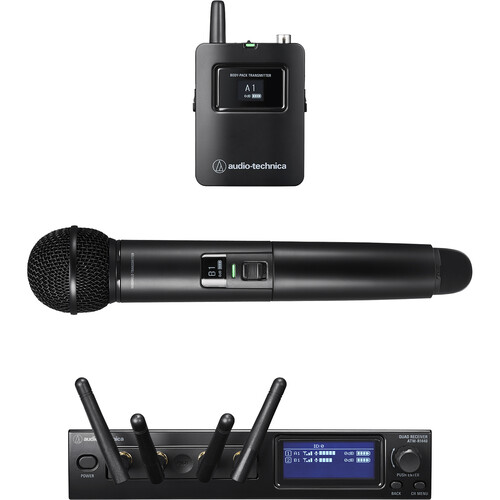

Audio-Technica System 20 PRO Dual (Handheld and Body-Pack) System ATW-1423

• This configuration of the System 20 PRO includes a handheld microphone transmitter equipped with a dynamic mic capsule. The capsule features a hypercardioid polar pattern that focuses audio capture narrowly in front of the mic for less bleed from other instruments and feedback from stage monitors.
• In addition, this version of the system also offers a compact and lightweight bodypack transmitter, featuring a moisture-resistant Hirose 4-pin cW-style connector, allowing you to choose a compatible lavalier or headset mic for hands-free speech for a performer or presenter.
• The handheld transmitter provides up to 18 hours of use with two alkaline AA batteries and up to 35 hours with lithium batteries.
• The bodypack will run for 15 hours on two alkaline AA batteries and up to 29 hours with lithium batteries.
• Both transmitters feature power switches that double as mute controls. This function can be locked out to prevent an accident.

• The flexible ATW-R1440 receiver offers two operational modes, depending on your needs. Standard mode provides 2 microphone channels at a latency of 2.8ms, while HD (High Density) mode delivers 4 mic channels at a latency of 6.7ms.
• The chassis’ front-panel OLED screen provides visual status information including RF signal level, gain level, and the transmitter’s battery life.
• A System ID number display indicates which transmitter is associated with a given receiver.
• The rear panel provides 4 balanced XLR output connectors for compatibility with a wide range of pro audio gear.
• The receiver module can be removed from the chassis and mounted up to 328′ away and connected via Ethernet cable for better antenna reception when necessary.

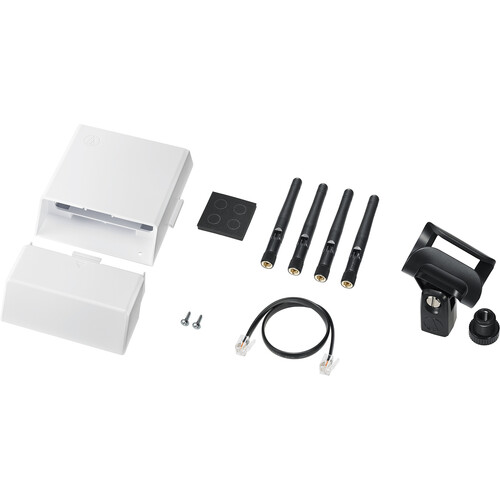

• A 1/4″-20 thread allows for mounting the receiver module to a bracket, stand, and other fixture. The unit can also be permanently wall mounted using the included receiver unit holder.
• The durable half-rack receiver chassis houses a modular receiver unit and can be mounted alone using the included mounting brackets and screws. Two chassis can be mounted side-by-side using the included joining plate, allowing eight wireless mic channels (in HD mode) to occupy a single 19″ rackspace for a compact multichannel installation.
• Up to five chassis can be linked using RJ12 cables, creating a stable environment in which up to 20 wireless mics are operating simultaneously, with all receiving, transmitting, and frequency allocation coordinated to prevent audio dropouts.

جودة الصوت الرقمي

• The System 20 PRO offers full-bandwidth, 24-bit/48 kHz digital audio with none of the audio artifacts associated with analog companding.

اختيار التردد التلقائي

• Just power up the components, and the receiver automatically seeks out a clean frequency and pairs up with the transmitter, saving you the hassle of scanning and syncing.
• أثناء الاستخدام، يراقب النظام باستمرار النشاط في نطاق Wi-Fi 2.4 جيجا هرتز ويتحول تلقائيًا إلى تردد نظيف لتجنب التداخل إذا لزم الأمر.

إقران أجهزة إرسال متعددة

• Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations. This is useful in situations when you have multiple speakers, one after another, and you need to have them miked up and ready to go. All you’ll have to do is turn one transmitter off and the next one on.

Remote Control from Computer

• Wireless Manager is a dedicated software that supports the wireless operation of Audio-Technica products. Connecting the receiver to a computer running Windows or macOS allows you to monitor the status of and control the receiver.
• You can configure device settings in an offline manner and even import settings by establishing an online connection with a device. Certain settings, including detailed mix outputs, EQs, and compressor parameters are only adjustable via Wireless Manager.

يعمل الاستقبال المتنوع الثلاثي على زيادة سلامة الإشارة اللاسلكية

• Space Diversity: the receiver compares the signal showing up at its two antennas and chooses the strongest one.
• Time Diversity: the transmitter sends the digital signal in two imperceptibly different time slots and compares the two.
• Frequency Diversity: the digital audio is sent over two different frequencies at the same time and the system chooses the cleaner one.

للحصول على الأداء الأمثل، يتم تشجيع المستخدمين على الحفاظ على خط رؤية مباشر قدر الإمكان بين جهاز الإرسال وجهاز الاستقبال.

نطاق واي فاي 2.4 جيجا هرتز

• Unlike traditional analog wireless systems, the System 20 PRO operates in the 2.4 GHz ISM band, away from interruptions and dropouts caused by TV and radio channel interference.
