Tascam SS-CDR250N Two-Channel Networking CD and Media Recorder

Tascam
دلائل الميزات :
  • XLR and RCA Input and Output Jacks
  • AES/EBU and S/PDIF Digital I/O
  • RS-232C Serial & 25-Pin Control Ports
  • Records to SD Card or USB Media
  • Graphic LCD Displays Time, Level & Menu
  • Compact, Rack-Mountable 1RU Format
  • Supports SDXC Media Cards up to 128 GB
  • Compressor and Limiter on Input
  • Dual-Format Recording as WAV and MP3

105,380 جنيه مصري

  التوصيل خلال 12-20 يومًا

Tascam SS-CDR250N Overview

ال SS-CDR250N Two-Channel Networking CD and Media Recorder من تاسكام is a solid-state recorder that features networking and can accept an optional IF-DA2 Dante card for integrating into any commercial environment. It can be used in broadcast and contractor installation markets, and records in WAV, MP3, SD/SDHC/SDXC, USB memory, and CD application formats.

Built with parallel and RS-232C serial control, along with up to 20 tracks of flash start, the media recorder provides balanced and unbalanced I/O, and coaxial digital I/O. These unique features make the SS-CDR250N Two-Channel Networking CD and Media Recorder an ideal one rack-space media solution.

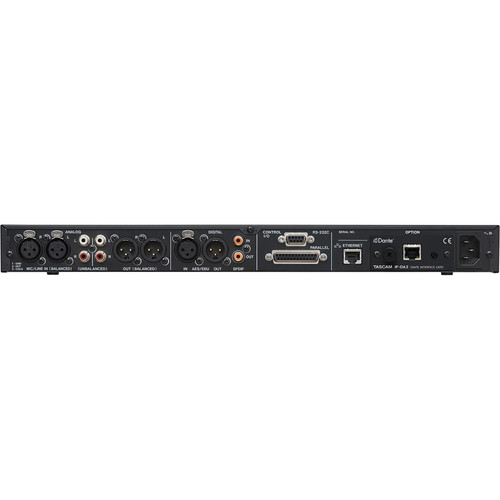

Balanced and unbalanced analog I/O (XLR and RCA jacks)
Record or dub to CD-R media @ 44.1K/16-bit
AES/EBU and S/PDIF digital I/O
Optional IF-DA2 Dante card allows the unit to operate on a Dante audio network
Sample rate converter on digital inputs
RS-232C Serial and 25-pin parallel control ports
Records to SD Card or USB media
Automatic file close saves file every 2 seconds to prevent data loss if power is interrupted while recording
Pre-record records the input buffer so that the start of a recording isn’t missed
Auto cue and auto ready for instant track playback
Power-on play begins playback as soon as the unit is switched on

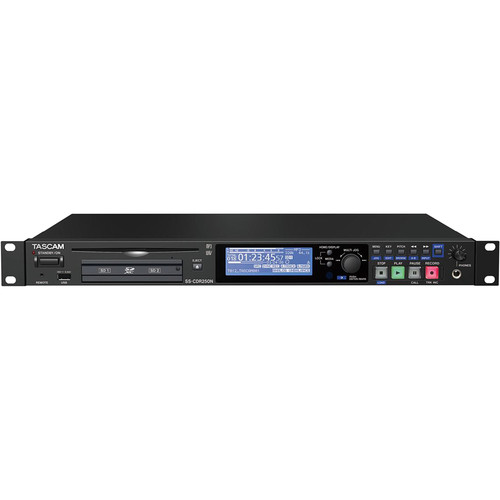

Graphic LCD display with time, level, and menu information
Security screw to keep the SD slots covered
VSA (Variable Speed Audition) changes playback speed without changing the pitch and vice-versa
Compact 1U rack-mountable format
Ethernet connection can be used for control and file transfer
Microphone inputs with phantom power
Supports SDXC media for cards larger than 32 GB (up to 128 GB)
Redundant recording feature records program to both cards simultaneously
Relay record begins recording on the second card when the first one fills up
Free app for iOS and Android allows the recorder to be operated from a smartphone
FTP client and server functions allow recordings to be automatically uploaded to a server, or for program to be pushed to a player from a remote location
Password protection and file encryption prevent stolen data assets
Scheduled recording triggers recording or playback at a certain time each week, etc. Can be used together with automatic uploads for instant availability
SNTP function allows the internal clock to be set using internet time servers
Link playback function allows two units to be operated simultaneously for redundant backup
Compressor and limiter on input
Auto level control monitors and adjusts the input signal
Power-on record function starts recording as soon as power is switched on
Mono mix playback function
Three user presets allow quick setting of input level, sample rate, etc.
Auto-mark function shows where a file has clipped
Dual-format recording simultaneously captures files as WAV and MP3 format
رمز المنتج: TASSCDR250N التصنيفات: , الوسوم: , , , ,
شكل عامل

Rackmount

Number Of Tracks

2

Maximum Simultaneous Tracks

2 x Recording

الحد الأقصى لمعدل أخذ العينات

44.1 kHz / 16-Bit

إدخال/إخراج الصوت التناظري

1 x 1/4" TRS Headphone Output 1 x Stereo RCA Coaxial Unbalanced Input 1 x Stereo RCA Coaxial Unbalanced Output 2 x XLR 3-Pin Balanced Mic/Line Input 2 x XLR 3-Pin Balanced Output

إدخال/إخراج الصوت الرقمي

1 x XLR 3-Pin AES3 Input 1 x RCA Coaxial S/PDIF Input 1 x XLR 3-Pin AES3 Output 1 x RCA Coaxial S/PDIF Output

USB (غير مضيف)

1 x USB Type-A (USB 2.0)

شبكة الإدخال/الإخراج

1 x RJ45 Ethernet (100BASE-TX)

الإدخال/الإخراج الأخرى

1 x 1/8" / 3.5 mm TRS Remote Input 1 x DB-25 Control/Parallel 1 x DE-9/DB-9 RS-232 1 x 2.5 mm TRS Remote Input

استجابة التردد

20 Hz to 20 kHz ±0.5 dB (JEITA)

Maximum Input Level

Analog Inputs: +20 dBu Control Inputs: +5.5 V Line Inputs: +6 dBV

Headphone Output Power

45 mW per Channel into 32 Ohms (Max, 0.1% THD)

Impedance

Analog Inputs: 22 Kilohms XLR Outputs: 100 Ohms RCA Outputs: 200 Ohms

النطاق الديناميكي

95 dB (JEITA)

SNR

≥ 95 dB (JEITA)

THD

≤ 0.005% (JEITA)

Crosstalk

95 dB (JEITA)

Audio File Formats

MP3, WAV

أسعار العينات

44.1 / 48 / 96 kHz (WAV, Playback) 44.1 / 48 kHz (MP3, Playback) 44.1 / 48 / 96 kHz (WAV, Record) 44.1 / 48 kHz (MP3, Record)

أعماق البت

16 / 24-Bit (WAV)

Bit Rates

64 to 320 kb/s (MP3)

Supported Media

SD Card, SDHC Card, SDXC Card, USB Flash Drive, CD-R, CD-R-DA, CD-RW, CD-RW-DA

Supported Media Capacity

SD: 512 MB Minimum to 2 GB Maximum SDHC: 4 GB Minimum to 32 GB Maximum SDXC: 128 GB Minimum USB Flash Drive: 512 MB Minimum to 64 GB Maximum

متطلبات الطاقة

AC Input

استهلاك الطاقة

23 W (Maximum)

طاقة إدخال التيار المتردد

100 إلى 240 فولت تيار متردد، 50/60 هرتز

في الصندوق

  • Tascam SS-CDR250N Two-Channel Networking CD and Media Recorder
  • AC Power Cord
