Audac MWX45 Wall Panel Controller With Wall Plate

Audac MWX45 Overview:

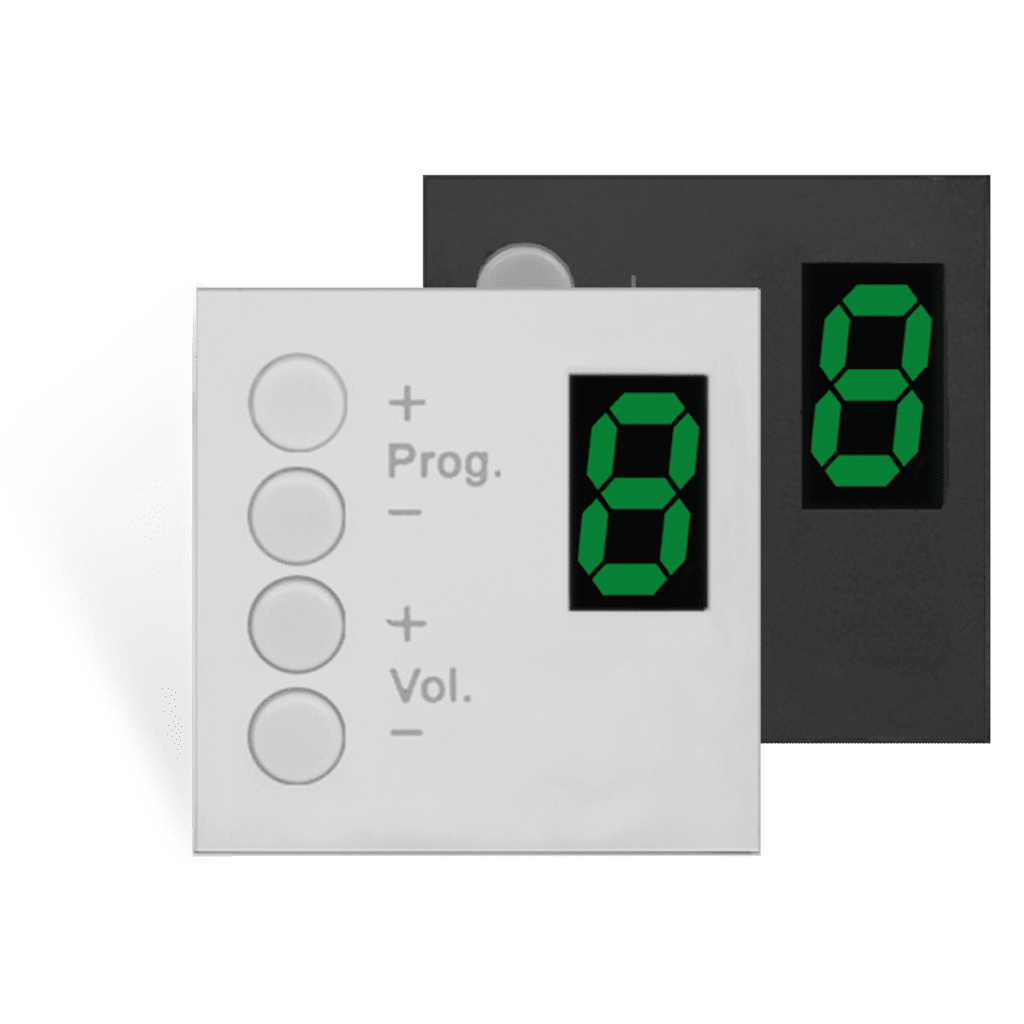

The MWX45 are wall panel controllers to be used in combination with the AUDAC MTX series multi-zone audio matrix systems and the AUDAC AMP523MK2 & RM523. It provides the possibility to select the desired audio source and control the volume for one zone. The 7 segment LED display indicates the current selected audio source (1-8) or volume. The connection between the wall panel and the matrix system is achieved by using standard CAT5 UTP cable which should be connected to the terminal block connector on the back side of the wall panel. The wall panels are available in 45 mm, this version is compatible with AUDAC, Niko, Legrand and other standard 45 x 45 mm installation materials. Thanks to its slim and good looking design, these wall panel controllers will blend into all kinds of different environments or interiors. Available in black (/B) and white (/W). There are two different AUDAC cover frames with metal subframe available, for 1 or 2 units, which are also available in black (/B) or white (/W).
