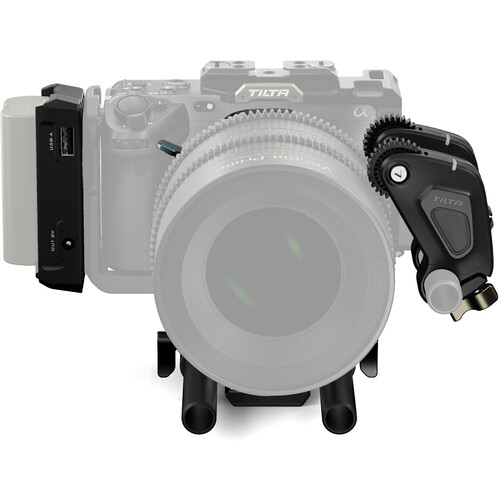

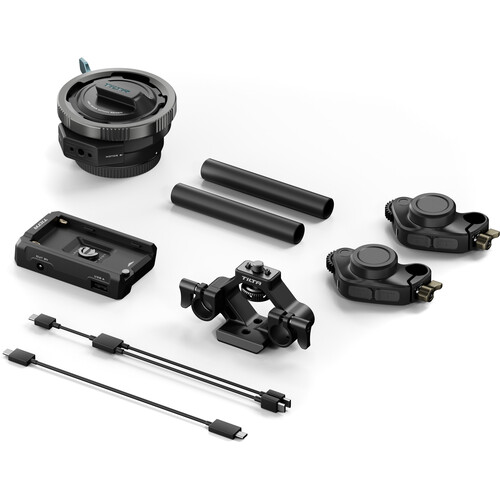

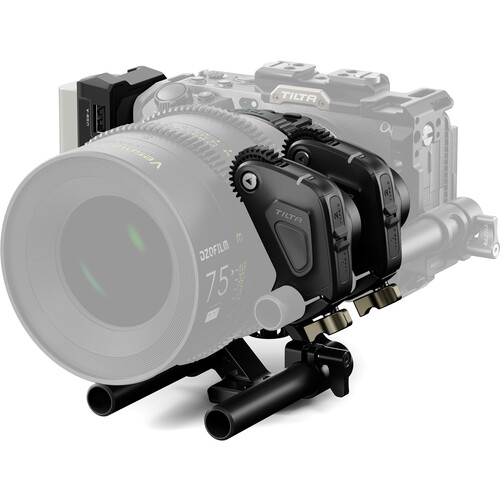

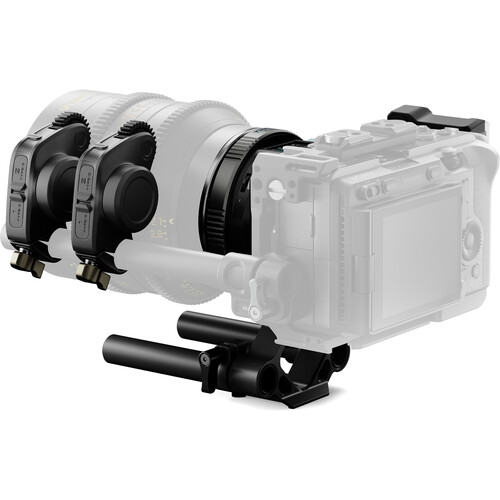

Tilta Nucleus Autofocus Adapter – Dual Nano II Motor Kit

With increased torque and both USB-C and Wi-Fi connectivity, the Nucleus Nano II FIZ Lens Control Motor Kit من تيلتا includes an upgraded motor designed to power the zoom, focus, or iris functions of your FIZ system. The motor drive is positioned in an offset orientation from the main gearing to prevent the motor from pushing away from the lens during use. A 0.8 MOD gear ensures compatibility with most cinema-standard lenses.

Two USB-C ports on the motor—one I/O and one input only—power the motor and can pass power through to multiple motors to control FIZ from a single source. Built-in 2.4 GHz Wi-Fi connectivity can pair the device with the separately available Handwheel Controller or Control Handle. Pair the device using the onboard pairing button and use the LED indicator to set its function. An integrated 15mm single rog clamp attaches the motor to your rig. Expand compatibility to other DSLR and mirrorless lens models with the included lens adapter ring.

Power your camera and accessories mounted on a full or half cage with this Tilta gray L-Series Battery Plate من تيلتا. The plate mounts one Sony NP-F970 L-series battery and features DC barrel and USB outputs to power your camera and additional accessories. It is constructed with durable aluminum with stainless steel components.

The battery plate features one 8 VDC 2.1mm barrel output and one 12 VDC 2.5mm barrel output on either side. It also features a 5 VDC USB-A port on one side to power small accessories like a smartphone, and on the other side a USB-C port allows you to charge the battery via its 18W PD input or it provides charging output. The plate also features a 1/4″-20 screw with anti-twist pins for mounting onto the cage, and soft padding prevents slipping and scratching when mounted.
