Audio-Technica 3000 Series (fourth generation) body-pack transmitter ATW-T3201
Key Features
- For 3000 Series Receivers
- Use with Lav/Headset Mic or Instrument
- 4-Pin Hirose cH-Style Connector
- 2400 Auto-Scan Frequencies
- Selectable 10/30mW RF Power
- Mute Switch, Backlit OLED
- Adjustable Input Level Control
- 9.5-Hour NiMH Batteries
9,300 EGP
2-4 Days Delivery

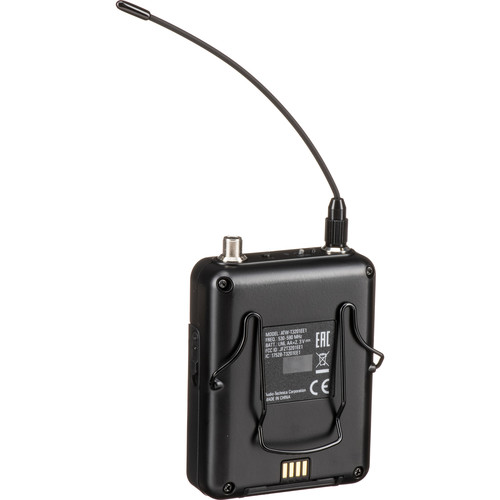

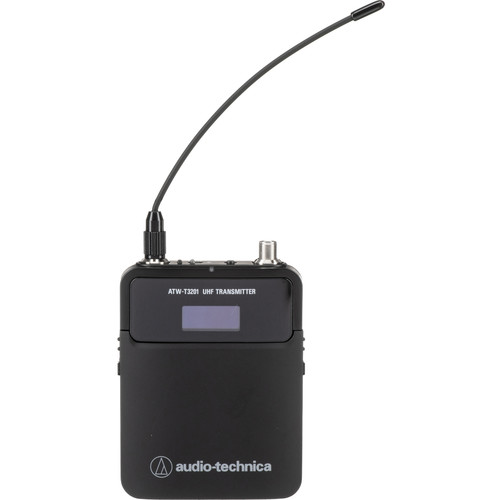

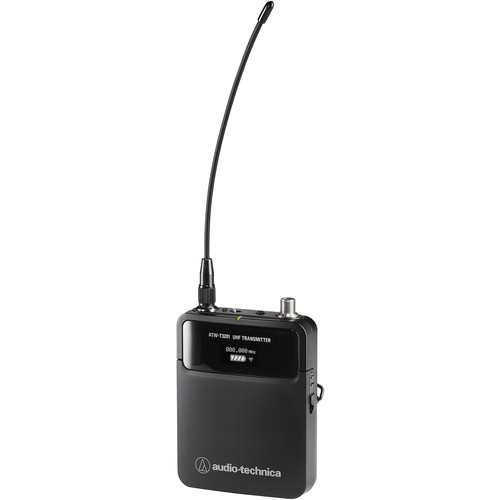

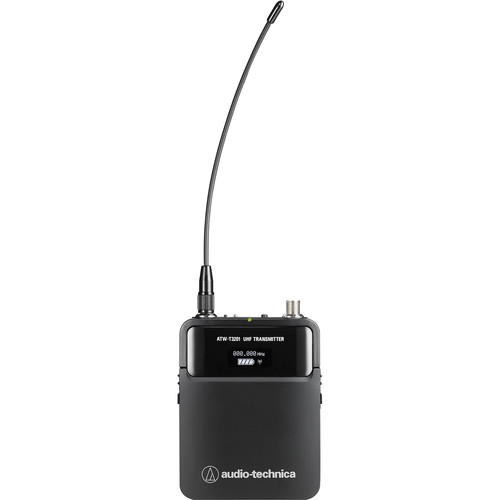

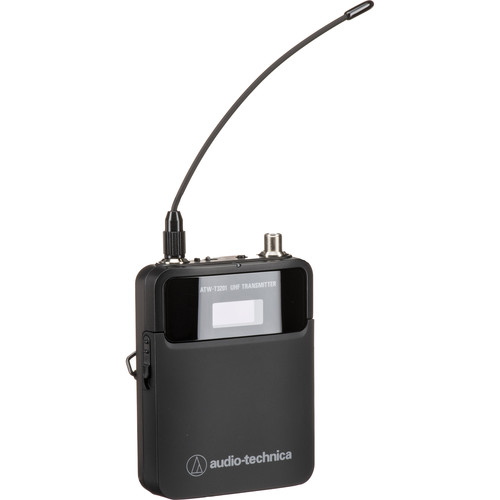

3000 Series (fourth generation) body-pack transmitter ATW-T3201
The Audio-Technica ATW-T3201Â is a 3000 Series (4th generation) bodypack transmitter compatible with ATW-R3210 and ATW-R3210 Networked receivers. It features a 4-pin cH-style screw-down connector and an adjustable input level to accommodate the cH-style lavalier or headset microphone of your choice, or an adapter cable for guitar and bass. With a rugged metal housing and rounded corners, the transmitter is comfortable to wear and provides natural audio to presenters, clergy, lecturers, and performers working in business and educational settings, houses-of-worship, theaters, or on musical stages.
The ATW-T3201 operates on a wide 60 MHz UHF tuning range with 2400 selectable frequencies available. It provides up to 9.5 hours of operation on two AA NiMH rechargeable batteries (available separately), with a selectable 10/30mW RF power output for overcoming interference in difficult RF environments. The transmission range is up to 330′.
- The transmitter’s input accepts low-impedance microphone levels as well as high-impedance musical instrument or line levels. The gain ranges from -10 to +20 dB and can be adjusted in 2 dB increments.
- The bright OLED screen presents comprehensive setup and operating information, including battery indicator, mute status, and operating frequency. Setup functions are menu-driven via soft-touch controls, which are covered to prevent accidental changes.

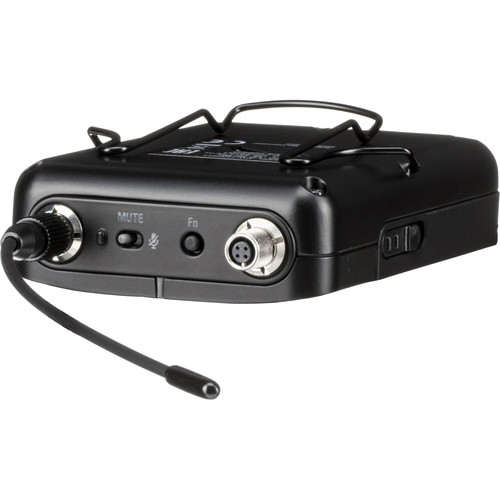

- A tactile mute toggle switch (defeatable) provides physical confirmation of mute status when transmitter display is not visible.
- The transmitter easily syncs to the receiver via infrared with a quick press on the Sync button.
- Two RF power output settings are available: the low-level setting extends battery life while the high-level offers a stronger RF signal link.
- In case of interference, the programmable multifunction button on the transmitter can be used to switch to a clean, backup frequency with minimal interruption.
- The durable metal chassis is equipped with a field-replaceable whip antenna and a secure, locking battery compartment door.
- The transmitter operates for up to 9 hours on two AA alkaline batteries and up to 9.5 hours on two rechargeable AA NiMH batteries.
- Charging terminals on the base of the transmitter work with the optional ATW-CHG3 charging dock or ATW-CHG3N networked charging dock (both available separately) to recharge AA NiMH batteries while inside the transmitter.
- To protect against misuse, the dock automatically shuts off if alkaline or damaged batteries are detected in the transmitter.
- The ATW-CHG3N networked dock allows users to monitor the charging status of the transmitter.
| Wireless Technology | Analog UHF |
|---|---|
| Max Operating Range | 328.1' / 100 m |
| RF Frequency Band | EE1: 530 to 589.975 MHz |
| Encryption | No |
| Built-In Recorder | No |
| Mobile App Compatible | No |
| Included Transmitters | 1x Bodypack |
| RF Output Power | 10 / 30 mW (Selectable) |
| Antenna | Removable Flexible Whip |
| Input Level | Microphone / Instrument / Line |
| Audio I/O | 1x Hirose cH-Style 4-Pin Male Input |
| Bias/Plug-In & Phantom Power | 5 V Bias/Plug-In Power No Phantom Support |
| muting | No |
| Gain Range | -10 to +20 dB (2 dB Steps) |
| Auto-Level/Gain | No |
| Sync Method | IR |
| Display | OLED |
| Transmitter Battery Type | 2x AA (Not Included) 2x Rechargeable (Not Included) |
| Transmitter Battery Life | Low: 9 Hours (Alkaline) 9.5 Hours (NiMH Rechargeable) High: 8 Hours (Alkaline) 9 Hours (NiMH Rechargeable) |
| Dimensions | 2.5 x 0.9 x 3.2" / 64 x 23 x 82 mm |
| Weight | 3.6 oz / 102 g (Without Batteries) |
In The Box
- Audio-Technica ATW-T3201 3000 Series Bodypack Transmitter (EE1: 530 to 590 MHz)
