Audio-Technica 2000 Series ATW-2110b Wireless UHF Bodypack System

Audio Technica
Key Features:
  • Band bI: 487.125 to 506.500 MHZ
  • 10 Selectable UHF Frequencies
  • ATW-R2100 UHF Diversity Receiver
  • ATW-T210 UniPak Transmitter

23,500 EGP

  2-4 Days Delivery

Audio-Technica ATW-2110BI Overview:

The ATW-2110b Wireless UHF Bodypack System from Audio-Technica bridges the gap between affordable wireless technology and professional level quality. It includes an ATW-T210 UniPak bodypack transmitter and an ATW-R2100 diversity UHF receiver that can be used when paired with a lavalier microphone in a variety of applications for live stage, fixed installations, rehearsals, public speaking, A/V rental houses, places of worship, and more.

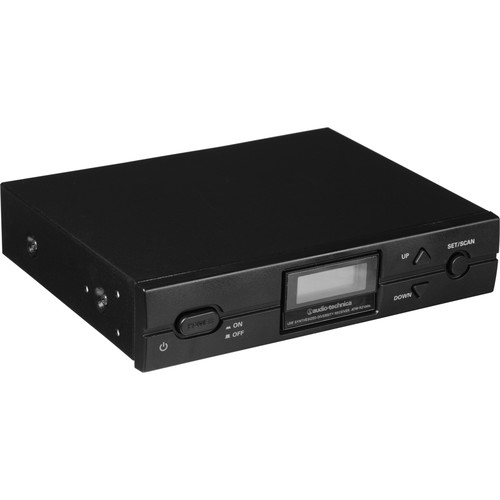

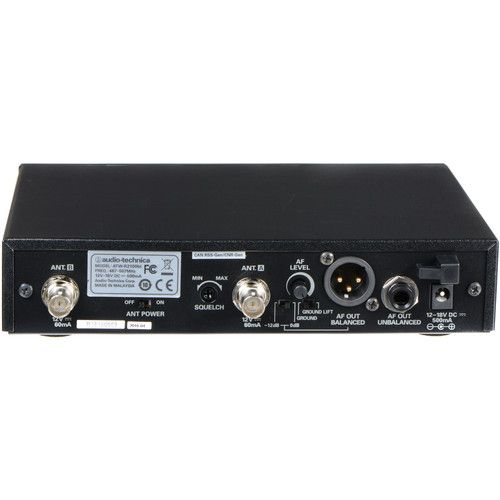

The ATW-R2100 receiver features True Diversity operation and selects between two receiver sections, reducing dropouts and radio frequency interference. Furthermore, it features 10 user selectable UHF frequencies, allowing 10 systems to be used simultaneously. Single touch frequency scanning automatically selects clear frequencies in the area. The rear panel features a balanced XLR output and an unbalanced 1/4″ phone connection. A back-lit LCD provides channel, AF, RF and diversity status information.

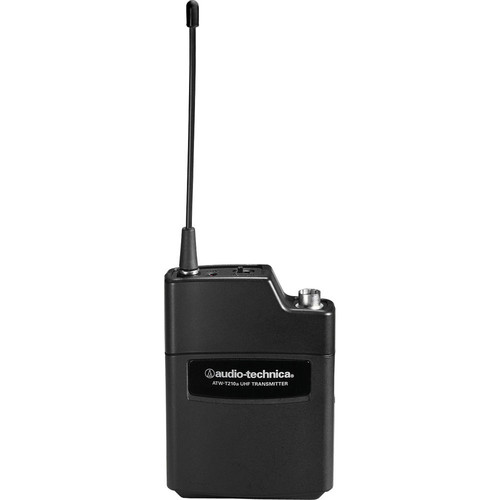

The ATW-T210 UniPak transmitter is a lightweight bodypack microphone transmitter that operates on the same frequencies as the receiver. The transmitter features a 4-pin Hirose connection input that is compatible with Audio-Technica “CW” lavaliers and headworn microphones, and select instrument cables. The transmitter operates up to 9 hours on two 1.5V AA batteries.

Serious advances in affordable professional wireless
Clear sound quality and rock-solid, dependable performance
Automatic frequency scanning
10 compatible user-switchable channels in one of two UHF frequency ranges
Antenna power available for powered antennas & other in-line RF devices
True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
Tone Lock tone squelch system fights interference
Rugged metal half-rack receiver with soft-touch controls and LCD display
Balanced XLR and unbalanced 1/4″ output jacks enable use with a wide variety of audio gear
Switchable transmitter power output with high and low settings offered
Includes rack-mount kit and detachable UHF antennas
Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver
Wireless Technology

Analog UHF

Number of RF Channel Frequencies

10

Included Transmitters

1 x Bodypack

Diversity

True Diversity

RF Frequency Band

I : 487.125 to 506.5 MHz

RF Bandwidth

19 MHz

RF Channel Scanning

Auto-Scan

Max Operating Range

328.1' / 100 m

Max Transmitters per Band

10

Dynamic Range

>110 dB

Deviation

±40 kHz (Peak)

Modulation

FM

THD

<1 %

Receiver Type

Tabletop / Rackmount

Mounting Options

Rackmount (with Included Hardware)

Rackmount Size

1RU

Antenna Bias Voltage

12 VDC, 60 mA (per Antenna)

Number of Audio Channels

2

Audio Output Level

XLR Output: +9 dBV 1/4" Output: +4 dBV

Impedance

Antenna : 50 Ohms

Approximate RF Sensitivity

20 dBuV

AC/DC Power Adapter

12 to 18 VDC at 500 mA (Included)

Transmitter Type

Bodypack

RF Output Power

10 / 30 mW (Switchable, at 50 Ohms)

Audio I/O

1 x Hirose cW-Style 4-Pin Female Unbalanced Input (Lockable)

Plug-In Power

9 V

Pad

None

Muting

Off/On Switch

Auto-Level Control

Yes

Frequency Response

100 Hz to 15 kHz +1/-3 dB

Sync Method

2.4 GHz QPSK

Antenna

1 x Flexible Whip

Power Requirements

Battery

Battery Type

2 x AA (Not Included)

Approx. Battery Life

Low : 9 Hours High : 7 Hours

Display & Indicators

1 x LED (Battery Status, Sync)

In The Box

  • Wireless UHF Bodypack System
  • AUATWR2100bI
  • AUATWT210bI
  • 2 x Flexible UHF Antennas
  • AC Adapter
  • Rack-Mount Adapters
