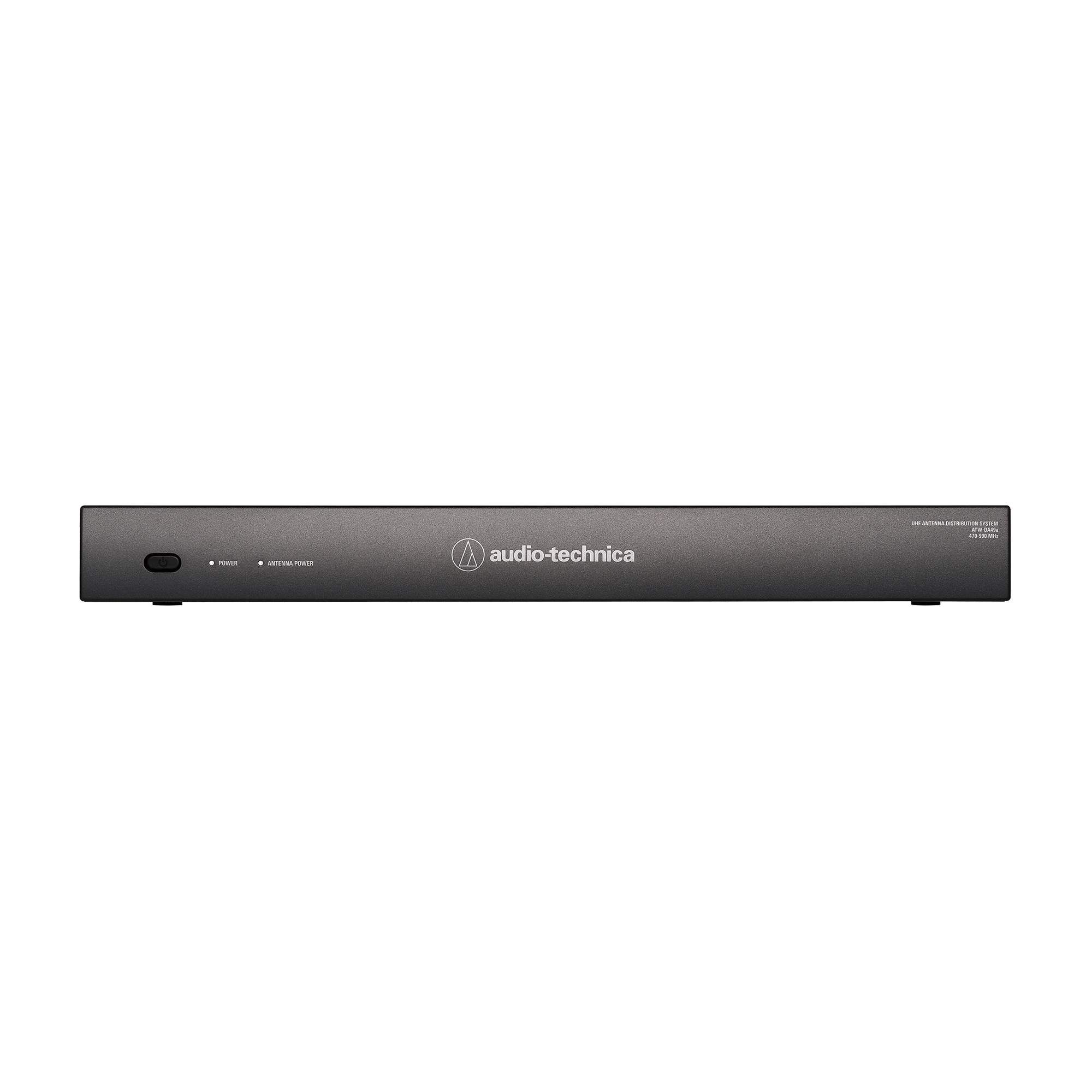

AUDIO TECHNICA ATW-DA49a UHF Antenna Distribution System Wide-band
Key Features:
- Active UHF diversity antenna distribution system
- Wide-band 470-990 MHz
- Enables one pair of antennas to feed multiple wireless systems (2x 1-in and 4-out + 1-cascade out)
- High OIP3 (+ 32 dBm) for maximum protection against intermodulation
- Provides antenna power 12 V / 250 mA max from each antenna input
- Designed to complement Audio-Technica’s wireless systems
- Suitable for many other wireless systems operating within the 470-990 MHz range
28,000 EGP
2-4 Days Delivery
AUDIO TECHNICA ATW-DA49a UHF Antenna Distribution System Wide-band Overview
The ATW-DA49a is a UHF active unity-gain diversity antenna distribution system that enables one pair of antennas to feed multiple wireless systems. One ATW-DA49a unit can support up to four wireless receivers. A wide-band unit that operates over a nominal 470-990 MHz range, the ATW-DA49a is designed to complement Audio-Technica’s wireless systems. It is also suitable for many other wireless systems (with external BNC antenna connections) operating within the 470-990 MHz range. Operation is possible with both directly connected antennas and remote antennas. In addition to the four antenna outputs, there is one cascade output per channel which additional distribution systems can be connected to for larger installations. Both antenna inputs provide antenna power for active antennas or boosters.The ATW-DA49a provides a high OIP3 (+ 32 dBm) for maximum protection against intermodulation.
| Brands | |
|---|---|
| Antenna Power (optional) | 12V DC, 250 mA max. |
| Current Consumption | 200 mA ± 50 mA at 12 V DC |
| Gain | +1.0dB typical (within specified bandwidth) |
| Input | 2 x 1 inputs |
| OIP3 | +30dBm typical (within specified bandwidth) |
| Color | Black |
| Output | 2 x 4 outputs + 1 cascade output |
| Termination Type | BNC Female |
| Operating Bandwidth | 470-950 MHz |
| Power Supply | 100-240V AC (50/60 Hz) to 12V DC 1A (centre positive) switched mode external power supply |
In the box
- 1x Audio-Technica ATW-DA49a unit
- 1x PSU (Power Supply)
- Rack mount ears (short)
- 8x BNC cables
- User manual
