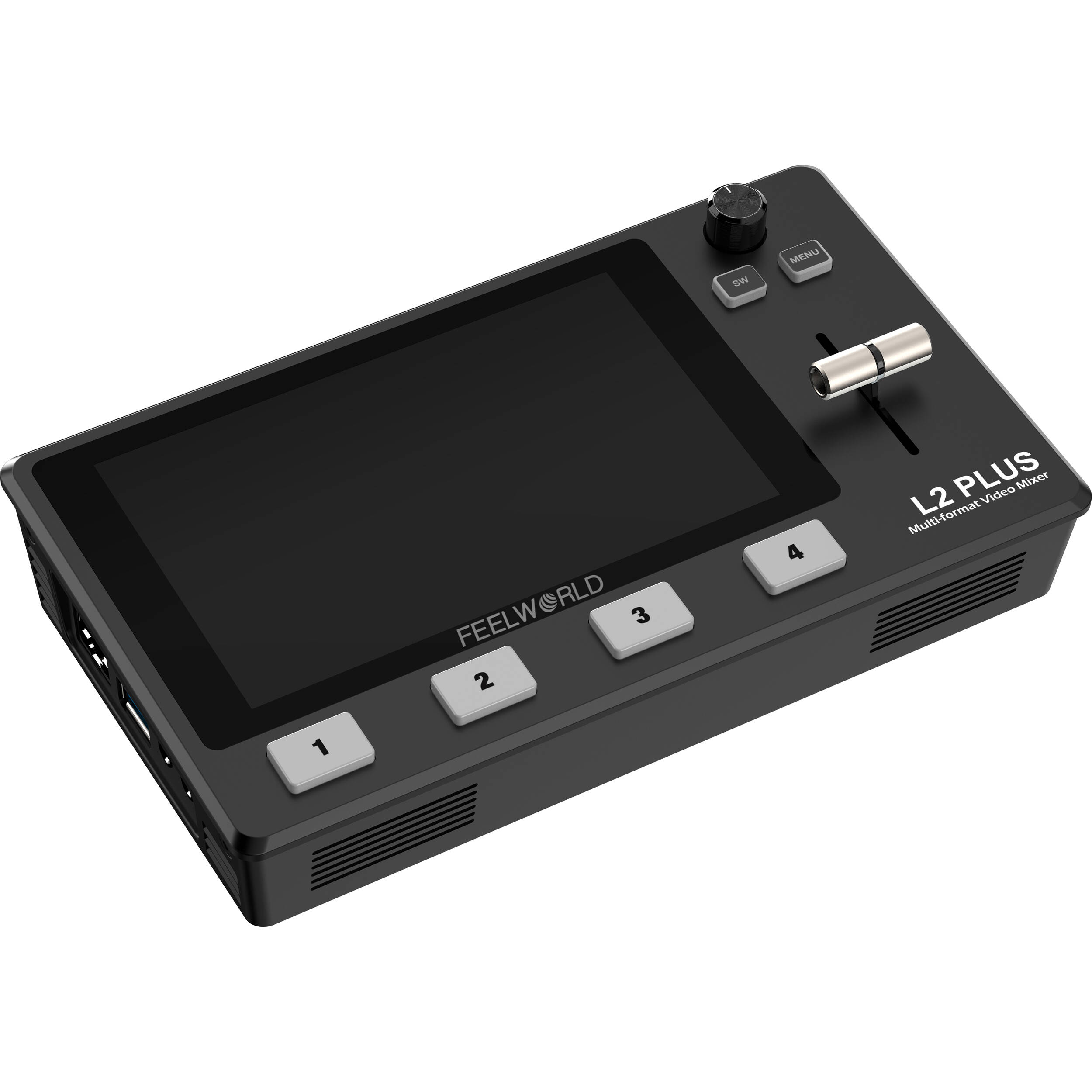

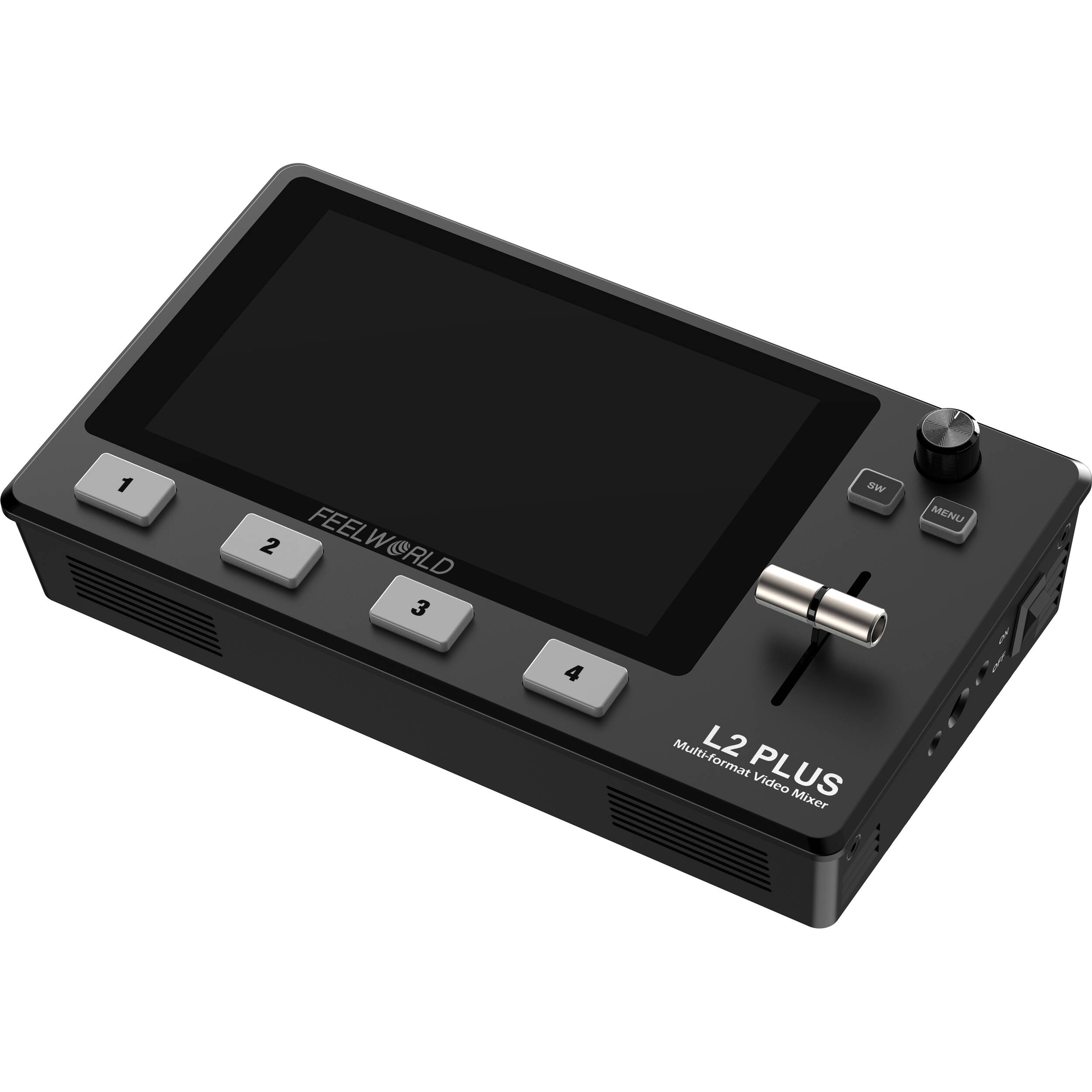

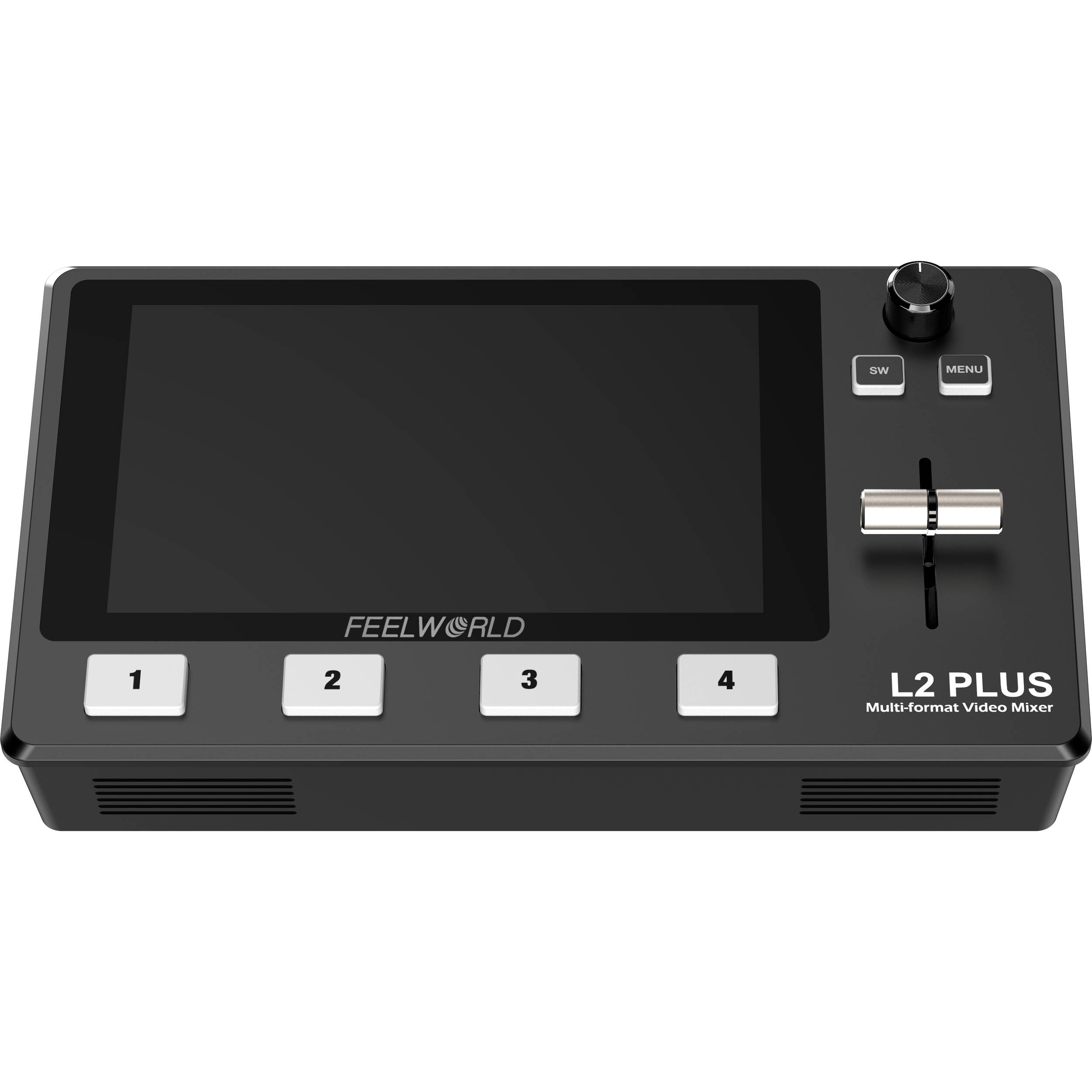

FeelWorld L2 PLUS Multi Video Switcher
Key Features
- 4-Input Video Production System
- 4 x HDMI Inputs, up to 1080p60 In/Out
- HDMI PGM/PST Output, USB 3.0 to Computer
- Built-In 5.5″ LCD Touchscreen Display
- 3.5mm Audio In/Out
- Supports up to 1080p60 Video In/Out
- 4-Channel Picture-in-Picture Preview
- 1/4″-20 Mounting Thread
20,000 EGP 27,500 EGP
2-4 Days Delivery
FeelWorld L2 PLUS Multi Video Switcher Overview
The FeelWorld L2 PLUS is a compact, versatile video production switcher designed to enhance live streaming and multi-camera productions. It combines functionality with user-friendly features, making it ideal for live-switching and control of up to four HDMI video sources.
- 4-Input Video Production System:
- Supports four HDMI inputs, allowing for seamless switching between multiple video sources.
- Each input can handle video resolutions up to 1080p60.
- Built-In 5.5″ LCD Touchscreen Display:
- Provides a clear, real-time preview of up to six pictures, including four individual inputs, PGM preview, and PST preview.
- Touchscreen operation makes it easy to switch inputs and control settings.
- HDMI Output:
- HDMI PGM/PST output for monitoring and program preview.
- USB 3.0 Streaming:
- Stream up to 1080p60 video to a computer via USB, compatible with third-party streaming software for easy live streaming integration.
- Audio Integration:
- 3.5mm audio input allows for the embedding of external audio sources.
- 3.5mm audio output enables de-embedding audio for use with external speakers or audio mixers.
- Supports HDMI embedded audio.
- Control and Transition Features:
- Switch inputs using the touchscreen or large LED buttons with tally indicators (green/red).
- Remote control capabilities via computer or smartphone app.
- Chroma key and logo overlay features for professional broadcast effects.
- T-bar for smooth transitions and signal source switching.
- Offers 15 transition effects and nine Picture-in-Picture (PiP) modes.
- PTZ Camera Control:
- Can control up to eight PTZ cameras, ideal for multi-camera setups.
- Mounting and Connectivity:
- 1/4″-20 mounting thread for flexible mounting options.
- USB 3.0 for fast live streaming and connection to a computer.
- Compact design suitable for on-the-go production setups.
The FeelWorld L2 PLUS is a comprehensive solution for content creators, live streamers, and videographers seeking a portable and efficient video switcher with advanced features and easy-to-use controls. It enables high-quality live productions with its robust set of features and connectivity options.
| Effect Types | 1 x Graphic, Transition, Chroma Key |
|---|---|
| Switching Type | Pushbutton, T-Bar, Touchscreen |
| Processing Resolution | 1080p at 23.98/24/30/50/60 |
| Number of Video Input Sources | 4 |
| Video Inputs | 4 x HDMI Female |
| Input Video Format | HDMI 1080p at 23.98/24/30/50/60 fps 1080i 50/60 fps 720p 50/60 fps WUXGA (1920 x 1200) 60 fps WUXGA+ (1680 x 1050) 60 fps UXGA (1600 x 1200) 60 fps WXGA+ (1440 x 900) 60 fps FWXGA (1366 x 768) 60 fps SXVGA (1280 x 1024) 60 fps WXGA (1280 x 800) 60 fps XGA (1024 x 768) 60 fps |
| Audio Inputs | 1 x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Embedded Audio Input | HDMI |
| Video Output Channels | 2 |
| Video Outputs | 1 x HDMI Female (Program) 1 x USB-A Female (Program) |
| Output Video Format | HDMI 1080p at 24/25/30/50/60 fps 720p 50/60 fps 1360 x 768 60 fps SXGA (1280 x 1024) 60 fps 1280 x 768 60 fps XGA (1024 x 768) 60 fps USB-A 1080p at 24/25/30/50/60 fps 720p 50/60 fps FWXGA (1366 x 768) 60 fps SXGA (1280 x 1024) 60 fps |
| Audio Outputs | 1 x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Output Audio Format | Analog |
| Embedded Audio Output | HDMI USB-A |
| Multiview Output | 4-Way Multiview viaHDMI |
| Display Size | 5.5" |
| Wi-Fi | None |
| Bluetooth | None |
| Power I/O | 1 x Barrel (12 VDC at 2 A) Input |
| Power Consumption | Device: 21 W |
| Operating Temperature | 32 to 82°F / 0 to 50°C |
| Operating Humidity | 5 to 85% |
| Dimensions | 7.5 x 4.3 x 1.7" / 19.1 x 11 x 4.3 cm |
| Weight | 1.3 lb / 610 g |
| Package weight | 2.31 lb |
| Box dimensions lxwxh | 10.6 x 5.3 x 3.3" |
In The Box
- FeelWorld HDMI Live Stream Switcher with Built-In 5.5″ LCD Monitor
- Power Adapter
- USB Cable
