Samson Concert 88 Camera Handheld Frequency-Agile UHF Camera Wireless System (K: 470 to 494 MHz)
- For Broadcast, Film, ENG, and Video
- Diversity Camera-Mount Receiver
- Wireless Handheld Transmitter
- Q8 Unidirectional Dynamic Mic Element
- 16 Selectable Frequencies
- Easy to Use, Simple Setup
- Headphone Output for Monitoring
- Up to 8 Mics on Set / 300′ Range
24,500 EGP
2-4 Days Delivery
Samson SWC88XVHQ8-K Overview:

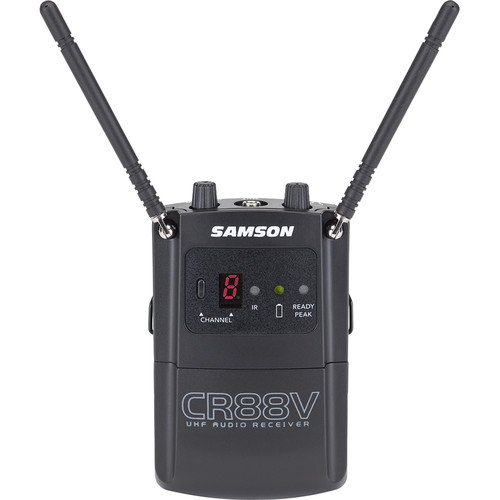

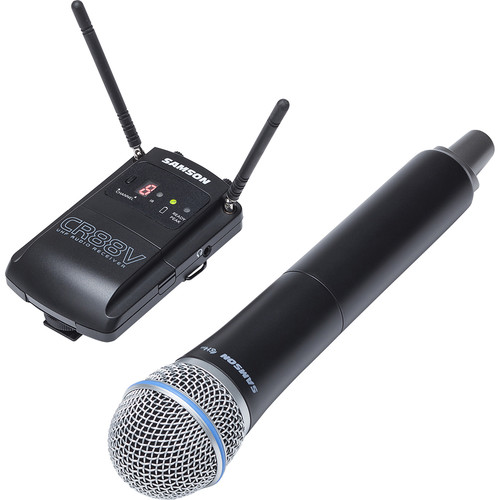

The Concert 88 Camera Handheld Frequency-Agile UHF Camera Wireless System from Samson includes a CR88V micro wireless receiver and a CH88 handheld transmitter equipped with a Q8 dynamic unidirectional capsule. This system can be used to accommodate a wide range of applications such as video, journalism, home video, multimedia, and ENG (electronic news gathering) with audio quality for your film and video productions.
Featuring 16 selectable frequencies over a 25 MHz bandwidth, the Concert 88 system delivers reliable, interference-free performance in any location. The receiver offers 12 hours of battery life from a single removable lithium-ion rechargeable battery. Two batteries are included to allow for quick changes and to limit downtime when the battery level is low. The receiver mounts directly onto a camera with a cold shoe mount or you can clip it on a shoulder strap.
Furthermore, the Concert 88 Camera operates in the UHF frequency band with a 300′ wireless range. Audio reaches the CR88V receiver via the handheld transmitter with the Q8 microphone capsule. The transmitter will run up to eight hours using two AA batteries (not included). Finally, the transmitter feature a variable gain control and a popless one-touch mute button.
- Up to eight simultaneous systems per frequency band (region dependent)
- 16 selectable frequencies for multi-location shoots
- Includes two rechargeable lithium-ion batteries
- Protective carry case

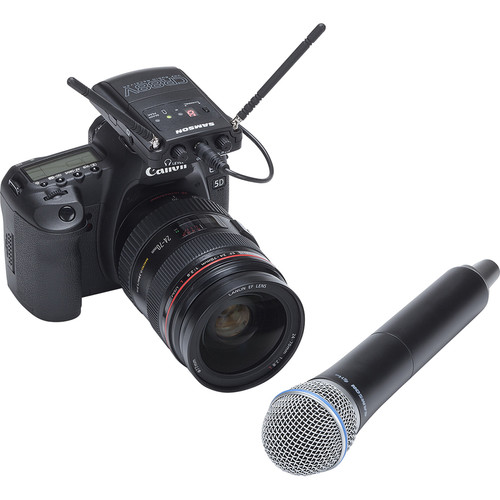

- Compatible with HD camcorder and DSLR cameras
- Offers 12 hours of battery life using single removable lithium-ion battery
- Battery level indicator
- IR sync wirelessly matches receiver and transmitter frequency

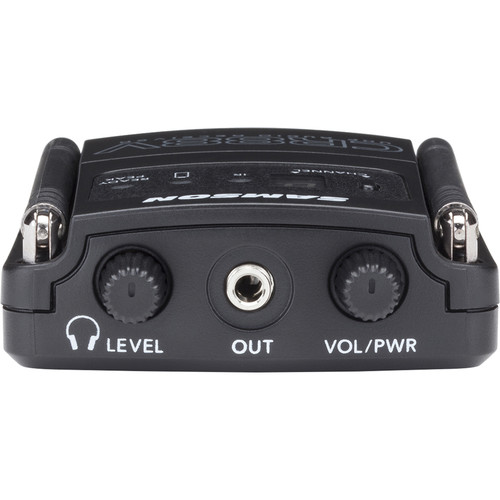

- 3.5mm output with level control

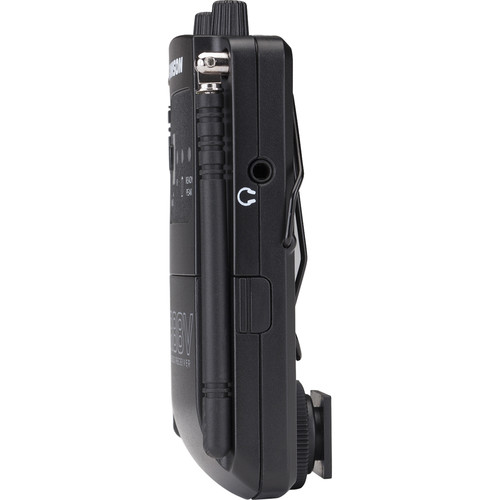

- Independent 3.5mm headphone monitor output with level control
- Tone-key technology prevents interference

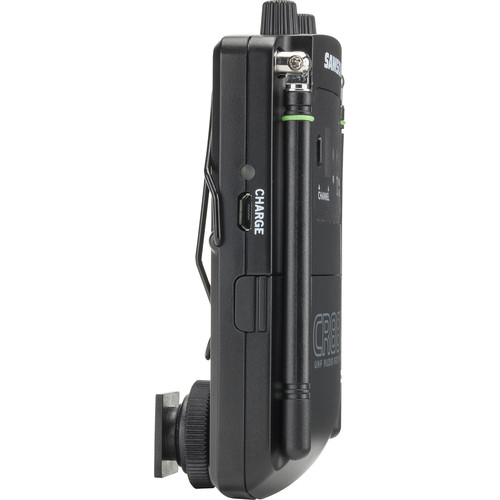

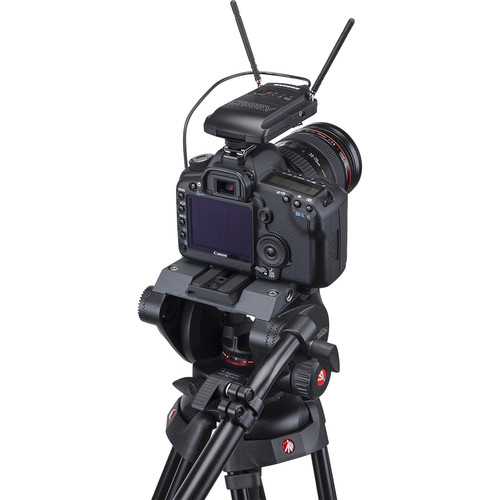

- Removable shoe mount adapter attaches receiver to camera
- Belt clip for strap mounting
- Q8 Professional dynamic microphone capsule
- Offers eight hours of battery life using two AA batteries (not included)
- 300′ operating range (line-of-sight)
- Variable gain control
- One-touch mute
| Wireless Technology | Analog UHF |
|---|---|
| Number of RF Channel Frequencies | 16 |
| Included Transmitters | 1 x Handheld |
| Diversity | True Diversity |
| RF Frequency Band | K: 470 to 494 MHz |
| Max Operating Range | 300' / 91.4 m (Line of Sight) |
| Max Transmitters per Band | 8 |
| Dynamic Range | >100 dBA |
| Encryption | Yes |
| Pilot Tone | 32.768 kHz |
| Receiver Type | Camera-Mount |
| Mounting Options | Belt Clip, Shoe-Mount |
| Number of Audio Channels | 1 |
| Audio Output Level | +9 dBu |
| Impedance | 1/8" / 3.5 mm Outputs: 1 Kilohms (Unbalanced) 16 Ohms (Unbalanced) |
| Power Requirements | Battery |
| Internal Battery Capacity | 1050 mAh |
| Battery Type | 1 x Rechargeable (Included, Replaceable) |
| Receiver Dimensions | 4.3 x 2.5 x 0.9" / 109.2 x 63.5 x 22.9 mm |
| Receiver Weight | 3.2 oz / 92 g |
| Transmitter Type | Handheld |
| Frequency Response | 50 Hz to 15 kHz (Dependent on Mic) |
| Antenna | 1 x Internal, Fixed (Handheld) |
| Display & Indicators | 1 x LED (Battery Status, Mute) |
| Transmitter Dimensions | 10.2 x 2.1" / 260 x 54 mm |
| Transmitter Weight | 7.7 oz / 218 g |
| Microphone Type | Handheld Capsule |
| Sound Field | Mono |
| Capsule | Dynamic |
| Polar Pattern | Unidirectional |
| Frequency Range | 50 Hz to 16 kHz |
| Maximum SPL | 150 dB SPL |

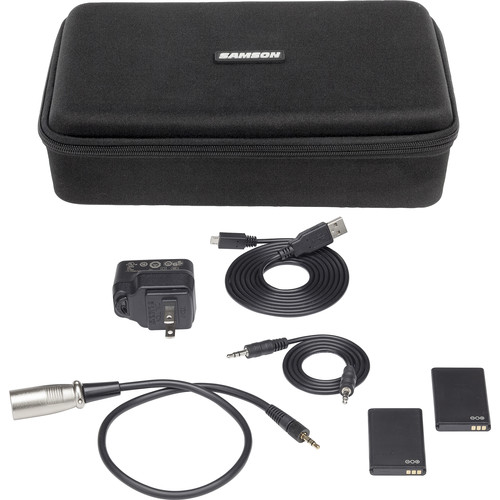

In The Box
- Samson Concert 88 Camera Handheld Frequency-Agile UHF Camera Wireless System (K: 470 to 494 MHz)
- Locking 3.5mm to 3.5mm Output Cable
- Locking 3.5mm to XLR Output Cable
- 2 x Lithium-Ion Rechargeable Batteries
- USB External Battery Charger/Cable
- Carry Case
