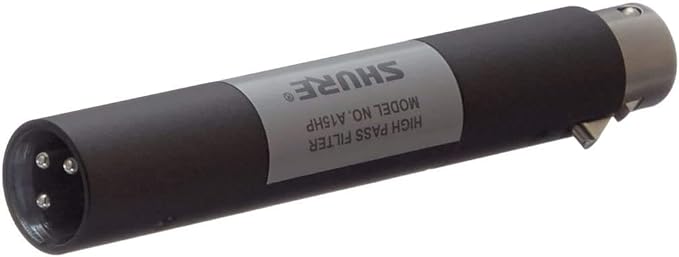

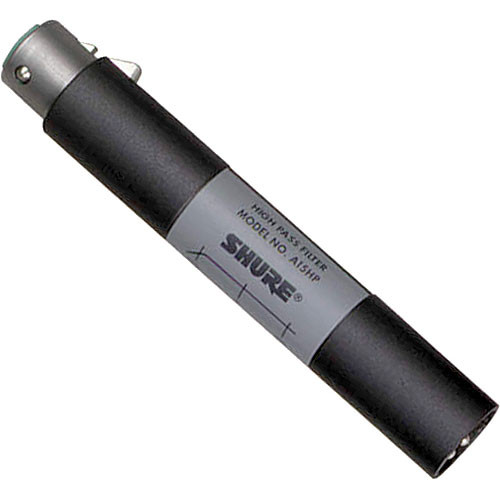

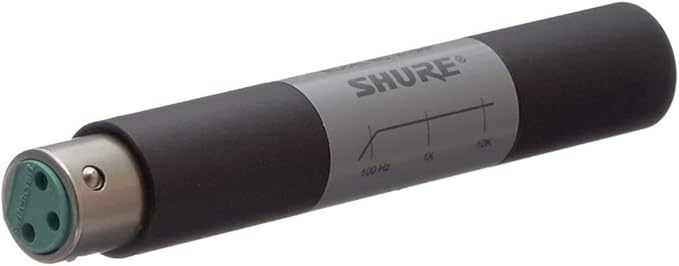

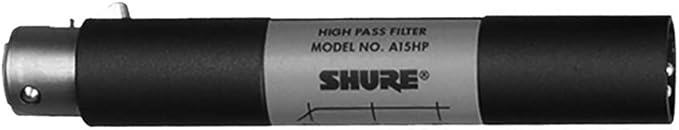

Shure A15HP High Pass Filter

Shure
Key Features
  • Rolls Off Low-Audio Frequencies
  • Reduces 60 Hz Electrical Hum

6,050 EGP

  12-20 Days Delivery

Shure A15HP High Pass Filter Overview

The Shure In-Line Hi-Pass Filter rolls off low-audio frequencies to reduce 60 Hz electrical hum and low-frequency-wind-, air-conditioner-, stand-, and floor-transmitted low-frequency vibrations.

When loaded with a low-impedance microphone input (800 ohms or more), the roll-off is 12 dB per octave below 100 Hz. When loaded with 150 ohms, the roll-off is 3 dB at 100 Hz. The output is flat above the roll-off point (with a maximum loss of 0.5 dB at 1 kHz).

  • Provides low-end roll-off of 12 dB per octave below 100 Hz
  • Reduces unwanted low end rumble in microphone signals
  • Slender, in-line XLR (F) to XLR (M) configuration
  • Requires use of balanced signals
SKU: SHA15HP Categories: , Tags: , , ,

In The Box

  • Shure In-Line Hi-Pass Filter
