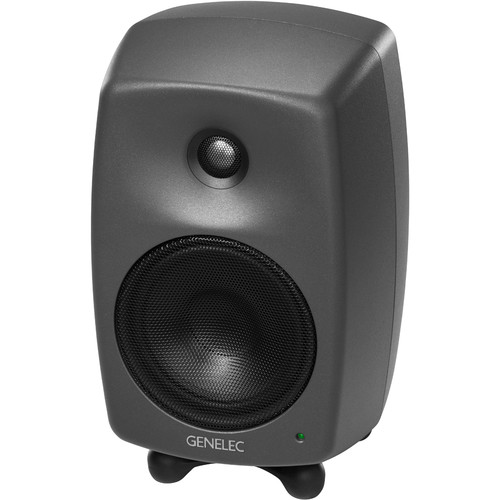

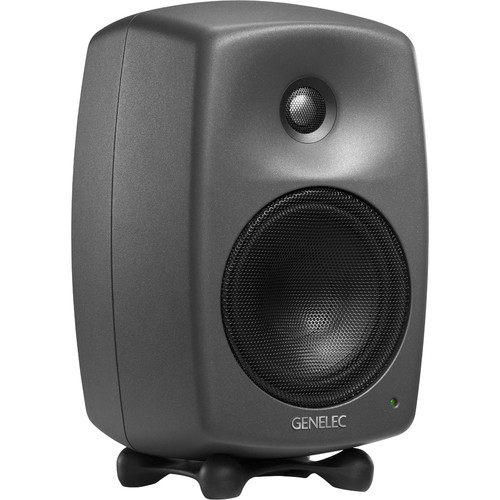

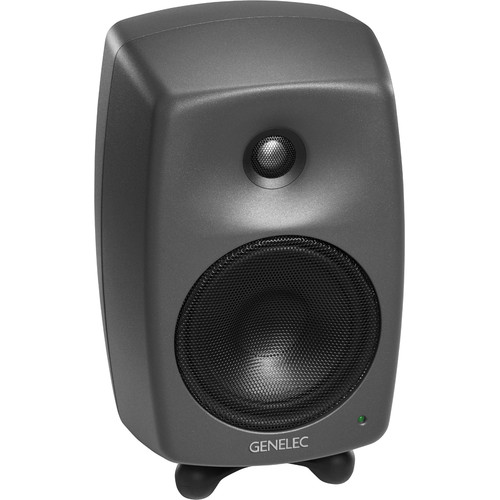

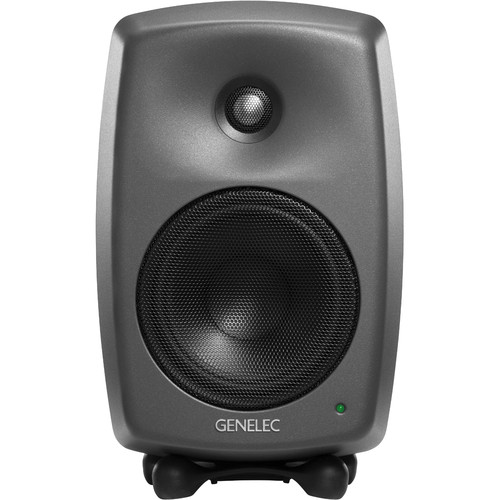

Genelec 8330A SAM Series 5inch 2-Way 100W Active Studio Monitor (Single- Producer)

Genelec

Key Features:

  • Powerful 100W Class-D Amplification
  • 5″ Woofer, 3/4″ Metal-Dome Tweeter
  • Proprietary Waveguide for Sweetspot
  • Bass Reflex Port For Low-End Extensio
  • Supports Software Control & Calibration
  • Low-Diffraction Aluminum Enclosure
  • XLR Analog and Digital Inputs
  • Power-Saving Mode & Overload Protection
  • Multiple Mounting Options
  • Includes Isolation Stand
Availability:

Out of stock

45,535 EGP

Out of stock

Genelec 8330A Overview:

If you need an accurate, professional nearfield monitor that’s easy to calibrate for any professional mixing setup, the Genelec 8330A is a fantastic option. Offered here in a dark gray Producer finish to better match your surroundings, this monitor is geared toward professional mixing engineers who work in small control rooms, project studios, and mobile setups. The 8330A offers software calibration to automatically tune the monitor to your environment, eliminating any need for hardware boundary controls, software monitor correction, or extraneous room treatment.

This is a monitor that offers a wide sweet-spot for which the room does not matter, so you can rest assured that what you’re hearing is accurate in both the mixer’s chair and the assistant’s seat. With digital as well any analog inputs, the monitor can accommodate your specific needs, whether you need to route sound from an audio interface, or require the ultramodern setup that a digial AES system enables.

Powerfully Compact
The 8330A offers 100W of Class-D amplification, driving a 5″ woofer and 3/4″ tweeter, and producing a frequency response of 45 Hz to 23 kHz. The bass reflex port helps the monitor to achieve this low frequency range.
Wide Sweet Spot
The sweet-spot is made wide by the combination of a proprietary waveguide which enhances imaging along with the die-cast aluminum enclosure itself. The shape of the monitor is constructed to minimize diffraction and reflections.
Reliable Circuit Protections
To safeguard your investment, Genelec has built signal overload protection into the monitor to ensure its dependability, and to protect the speaker from harm. A selectable power-saving mode enables automatic power up/down via a signal-sensing circuit.
Multiple Mounting Options
The 8330A offers multiple mounting options including an Iso-Pod isolation stand and threaded holes that are compatible with mic stands or various wall/ceiling brackets.
Monitor Type & Configuration

Active 2-Way

Number of Included Monitors

Single Monitor

Enclosure

Bass-Reflex/Ported, Shielded

Total Power Output

100 W

Tweeter

1 x 0.75" / 19 mm Metal Dome

Woofer

1 x 5.1" / 13 cm Cone

Amplifiers

HF: 1 x 50 W Class-D LF: 1 x 50 W Class-D

Frequency Range

45 Hz to 23 kHz (-6 dB)

Frequency Response

58 Hz to 20 kHz ± 1.5 dB

Total Harmonic Distortion (THD)

0.05%

Maximum Input Level

+24 dBu

Analog Input Sensitivity/Gain

-6 dBu (Continuously Variable)

Self-Generated Noise

Less Than 5 dBA (at 3' / 1 m)

Crossover Frequency

2.9 kHz

Maximum Sampling Rate

192 kHz / 24-Bit

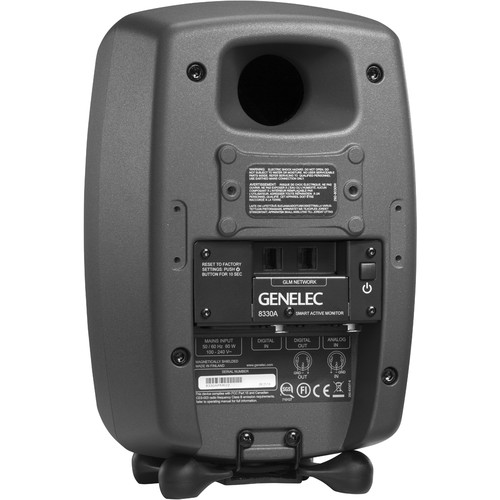

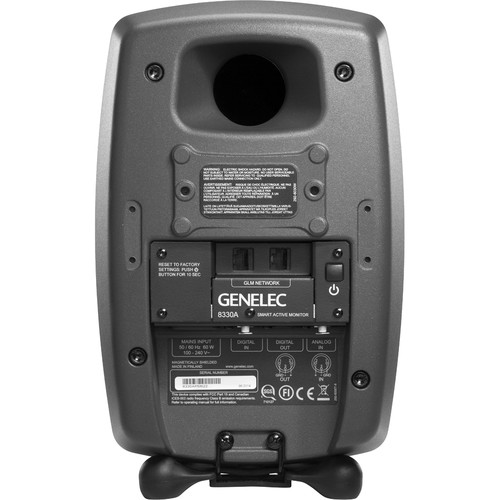

Audio I/O

1 x XLR 3-Pin Balanced Input (10 Kilohms)

Digital Audio I/O

1 x XLR 3-Pin AES3 Input 1 x XLR 3-Pin AES3 Out/Thru

Network I/O

2 x RJ45 Ethernet

USB

None

Wireless

None

AC Input Power

100 to 240 VAC, 50/60 Hz

Power Consumption

0.5 W (Standby) 3 W (Idle) 50 W (Maximum)

Color

Producer Gray

Dimensions

7.4 x 11.8 x 7" / 18.9 x 29.9 x 17.8 cm

Weight

12.1 lb / 5.5 kg

Package weight

13.55 lb

Box dimensions lxwxh

17.4 x 11.8 x 11.7"

In The Box

  • Genelec 8330A SAM Series 5″ 2-Way 100W Active Studio Monitor (Single, Producer)
  • Iso-Pod Isolation Stand
  • Power Cable
  • 16.4′ / 5m GLM (Genelec Loudspeaker Manager) Network Cable
