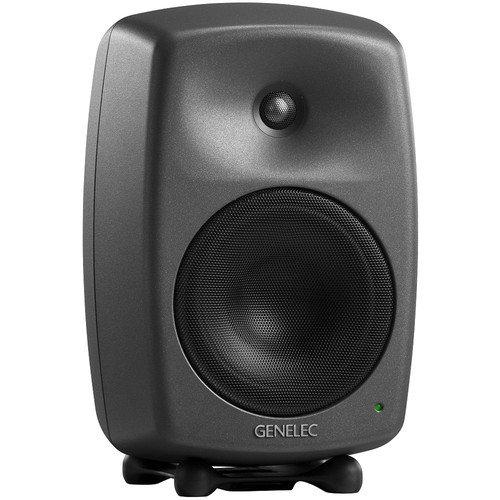

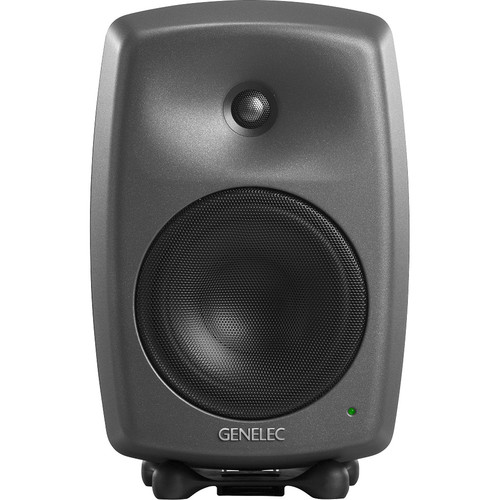

Genelec 8340A SAM Series 6.5inch 2-Way 300W Active Studio Monitor (Single- Producer Finish)

Genelec

Key Features:

  • 6.5″ Woofer, 3/4″ Metal-Dome Tweeter
  • 300W Class-D Amplification
  • Proprietary Waveguide, Bass Reflex Port
  • High- and Low-Frequency Controls
  • Supports Software Control & Calibration
  • Low-Diffraction Aluminum Enclosure
  • XLR Analog and Digital Inputs
  • Selectable Automatic Power-Saving Mode
  • Multiple Mounting Options
  • Includes Isolation Stand
Availability:

Out of stock

76,770 EGP

Out of stock

Genelec 8340A Overview:

Styled in dark gray Producer finish, the Genelec 8340A is a single SAM Series, 2-way active studio monitor designed to provide accurate mix referencing with software control capabilities for audio engineers, musicians, and producers in project studios, small-to-medium-sized control rooms, edit suites, or mobile setups. It features 300W of Class-D amplification driving a 6.5” woofer and 3/4” tweeter, producing a frequency response of 38 Hz to 22 kHz.

A proprietary waveguide enhances imaging, while the bass reflex port extends the low-frequency response. The die-cast aluminum enclosure is shaped to minimize diffraction and reflections. XLR connectors are provided for the balanced analog input and AES/EBU digital input and output. Built-in signal overload protection enhances dependability and protects the speaker. Rear-panel room compensation controls include level and high- and low-frequency adjustments. Detailed frequency adjustments and automatic calibration can be performed via GLM (Genelec Loudspeaker Manager) software and the GLM User Kit (available separately). A selectable power-saving mode enables automatic power up/down via a signal-sensing circuit.

The 8340A offers multiple mounting options including an Iso-Pod isolation stand and threaded holes that are compatible with select K&M mounts and various wall/ceiling brackets.

  • 6.5″ woofer and 3/4″ tweeter
  • 150W LF amp and 150W HF amp
  • 38 Hz to 22 kHz frequency response (-6 dB), 45 Hz to 20 kHz frequency response (±1.5 dB)
  • Proprietary waveguide utilizes DCW (Directivity Control Waveguide) technology for improved imaging and a wider listening area
  • Bass reflex port provides extended low-frequency response

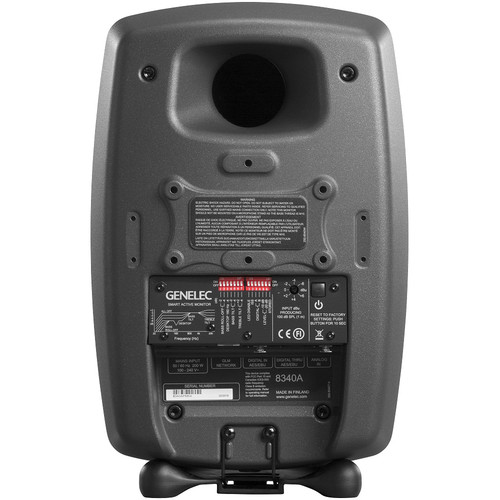

  • Rear-panel room compensation controls including high- and low-frequency adjustments
  • Supports automatic calibration via software control
  • Low-diffraction aluminum enclosure utilizes MDE (Minimum Diffraction Enclosure) technology
  • XLR connections for balanced analog input and digital AES/EBU input and output
  • ISS (Intelligent Signal Sensing) automatic power-saving mode
  • Multiple mounting options: Iso-Pod and threaded holes that are compatible with select K&M mounts and various wall/ceiling brackets
  • Includes Iso-Pod isolation stand for vibration decoupling
Monitor Type & Configuration

Active 2-Way

Number of Included Monitors

Single Monitor

Enclosure

Bass-Reflex/Ported, Shielded

Total Power Output

300 W

Tweeter

1 x 0.75" / 19 mm Metal Dome

Woofer

1 x 6.5" / 16.51 cm Cone

Frequency Response

45 Hz to 20 kHz ± 1.5 dB

Frequency Range

38 Hz to 22 kHz (-6 dB)

Maximum Sound Pressure Level (SPL)

118 dB

Signal-to-Noise Ratio

109 dBA

Total Harmonic Distortion (THD)

≤0.01%

Maximum Input Level

+25 dBu

Analog Input Sensitivity/Gain

+6 to -6 dBu (Continuously Variable)

Self-Generated Noise

Less Than 5 dBA (at 3.28' / 1 m)

EQ

2 x LF Shelf 2 x HF Shelf

Filters

16 x Parametric Notch Filter

Crossover Frequency

2.6 kHz

Maximum Sampling Rate

192 kHz / 24-Bit

Audio I/O

1 x XLR 3-Pin Balanced Input (10 Kilohms)

Network I/O

2 x RJ45 Ethernet

USB

None

Wireless

None

AC Input Power

100 to 240 VAC, 50/60 Hz

Power Consumption

1 W (Standby) 12 W (Idle) 180 W (Maximum)

Color

Producer Gray

Enclosure Material

Aluminum

Dimensions

9.3 x 14.4 x 8.8" / 23.6 x 36.6 x 22.4 cm

Weight

18.5 lb / 8.4 kg

Package weight

21 lb

Box dimensions lxwxh

17 x 11.8 x 11.8"

In The Box

  • Genelec 8340A SAM Series 6.5″ 2-Way 300W Active Studio Monitor (Single, Producer Finish)
  • Iso-Pod Isolation Stand
  • Power Cable
  • 16.4′ / 5m GLM (Genelec Loudspeaker Manager) Network Cable
