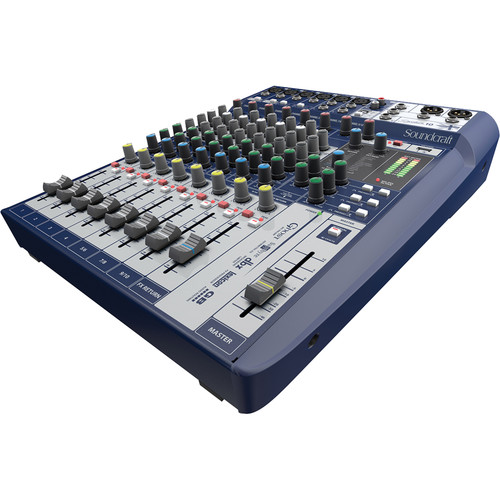

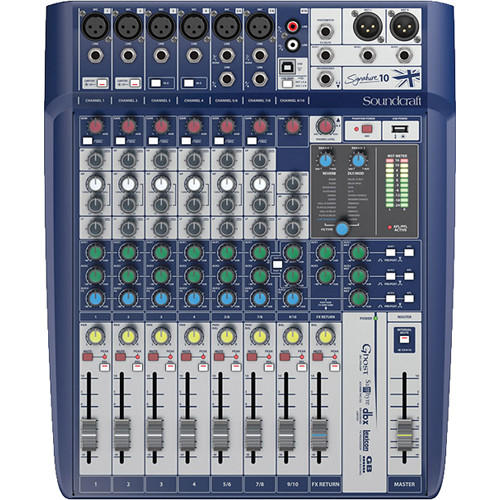

Soundcraft Signature 10 10-Input Mixer with Effects
- 10-Input Analog Mixer.
- 6 Ghost Mic Preamps.
- Sapphyre British EQ Per Channel.
- 2-In/2-Out USB Recording.
- Lexicon Effects Engine.
- Switchable Hi-Z inputs.
- HPF & 48V on Mic Channels.
Out of stock
31,085 EGP
Out of stock
Soundcraft Signature 10Â Overview:
The Signature 10 from Soundcraft is a 10-input analog mixer with onboard effects. The Signature 10 features faders with GB Series audio routing, flexible pre/post switching on each Aux, routing and switching options, and dedicated outputs. Housed in a robust metal construction and equipped with an internal universal power supply, this mixer is recommended for use by musicians and bands, in music venues and theaters, for tour sound, houses of worship, and more.
The built-in Ghost microphone preamps deliver high-quality audio with a wide dynamic range, clarity, and a high level of headroom. Additionally, the mixer uses Sapphyre Asymetric EQ for equalizing every vocal and instrumental element in a mix, and GB Series audio routing technology. The mixer provides a wide variety of built-in Lexicon studio-grade effects including reverb, chorus, and modulation, as well as dbx limiters on the input channels. XLR and switchable Hi-Z inputs enable guitars, basses, and other instruments to be connected directly.
The Signature 10 comes with a 2-in/2-out USB interface and free downloads of the Lexicon MPX-L native plug-in and Ableton Live 9 Lite.
- High-Performance 10-input small format analog mixer with onboard effects
- Ghost mic preamps with low noise performance
- Sapphyre British EQ with sweepable mid-bands per channel
- Lexicon effects engine featuring reverbs, delays, choruses, and modulations
- dbx limiters (high-ratio compressors) on input channels
- 2-in/2-out USB audio playback and recording
- Switchable Hi-Z inputs for guitars, basses, and other instruments
- Hi-Pass filters (low-cut) and 48V phantom power on all mic channels
- Comprehensive GB Series audio routing
- Smooth faders
- Robust metal construction for tour-grade build quality and reliability
- Internal universal power supply
| Frequency Response | Mic / Line In to Any Output: 20 Hz to 20 kHz (±1.5 dB) |
|---|---|
| THD | Mono Mic Sensitivity -30 dBu, Input Level -16 dBu, +14 dBu @ Mix Output: < 0.002% @ 1 kHz Stereo Mic Sensitivity -30 dBu, Input Level -16 dBu, +14 dBu @ Mix Output: < 0.007% 1 kHz |
| Noise | Mono Mic Input E.I.N. (Max Gain): <-126 dBu (150 Ohm source) Stereo Mic Input E.I.N. (Max Gain): <-124 dBu (150 Ohm source) |
| Crosstalk @ 1 kHz | Channel Mute: >-90 dB Fader Cut-off (rel +10 mark): >-90 dB Aux Send Pots Offness: >-82 dB |
| EQ Section | EQ (Mono Inputs) HF: 12 kHz, ±15 dB MF (swept): 140 Hz to 3 kHz, ±15 dB LF: 60 Hz, ±15dB EQ (Stereo Inputs) HF: 12 kHz, ±15 dB MF: 1 kHz, ±15 dB LF: 60 Hz, ±15 dB |
| Input & Output | Input and Output Levels Mic Input: +12.5 dBu max Line Input: >+26 dBu max Stereo Inputs: >+26 dBu max Mix Output: +21.5 dBu max Headphones (@ 150 Ohms): 300 mW |
| Impedance | Input & Output Impedance Mic Input: 1.2 kOhms Hi-Z Input: 968 kOhms Line Input: 10 kOhms Stereo Input: 21.5 kOhms Outputs: 150 Ohms (balanced), 75 Ohms (unbalanced) |
| USB Audio | Inputs/Outputs: 2-in, 2-out Bit Depth: 16-bit, 24-bit Sampling Rate: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz |
| Power Consumption | <50 VA |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Dimensions | 19.3 x 15.0 x 8.3" / 490.0 x 380.0 x 210.0 mm |
| Weight | 10.9 lb / 5.0 kg |
| Package weight | 13.95 lb |
| Box dimensions lxwxh | 19.3 x 15.2 x 8.3" |
| Channels | 10 |
In The Box
- Soundcraft Signature 10 10-Input Mixer with Effects.
