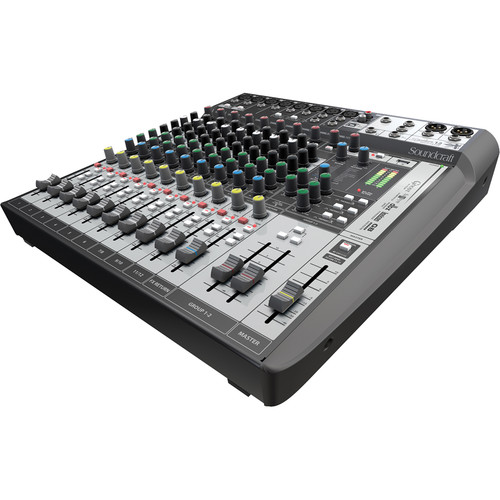

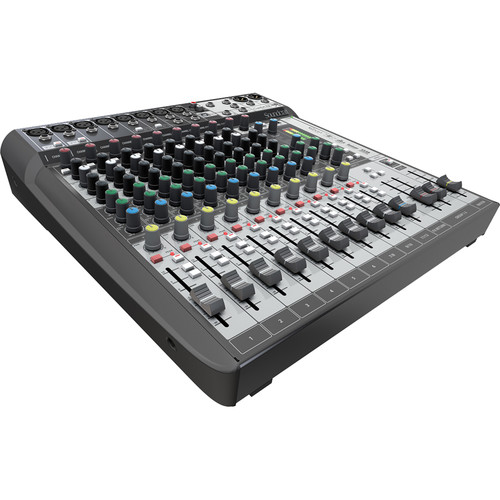

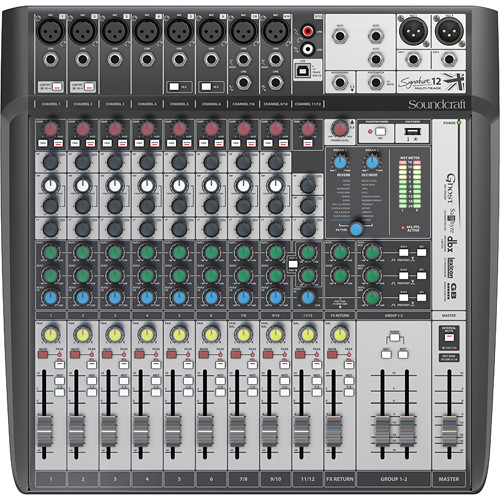

Soundcraft Signature 12 MTK 12-Input Multitrack Mixer with Effects
- 12-Input Analog Mixer.
- 8 Ghost Mic Preamps.
- Sapphyre British EQ per Channel.
- 14-In / 12-Out USB Recording.
- Lexicon Effects Engine.
- Switchable Hi-Z inputs.
- HPF & 48V on Mic Channels.
Out of stock
45,961 EGP
Out of stock
Soundcraft Signature 12 Overview:
The Soundcraft Signature 12 MTK is a 12-input analog mixer with on-board effects, and multitrack USB recording and playback. The Signature 12 MTK features faders with GB Series audio routing, flexible pre/post switching on each Aux, subgroups with powerful routing and switching options, and dedicated outputs. Housed in a robust metal construction and equipped with an internal universal power supply, this mixer is recommended for use by musicians and bands, in music venues and theaters, for tour sound, houses of worship, and more.
The built-in Ghost microphone preamps deliver high-quality audio with a wide dynamic range, clarity, and a high level of headroom. Additionally, the mixer uses Sapphyre Asymetric EQ for equalizing every vocal and instrumental element in a mix, and GB Series audio routing technology. The mixer provides a wide variety of built-in Lexicon studio-grade effects including reverb, chorus, and modulation, as well as dbx limiters on the input channels. To enable studio plug-ins to be integrated with live performances, the mixer incorporates a multi-track USB audio interface which allows any VST/AU/AAX/TDM/RTAS plug-in to be inserted on any input channel. XLR and switchable Hi-Z inputs enable guitars, basses, and other instruments to be connected directly.
The Signature 12 MTK comes with a 14-in / 12-out USB interface and free downloads of the Lexicon MPX-L native plug-in and Ableton Live 9 Lite.
- High-performance 12-input small format analog mixer with onboard effects.
- Multitrack USB recording and playback.
- 14-in / 12-out low latency USB playback and recording interface.
- Ghost mic preamps with low noise performance.
- Sapphyre British EQ with sweepable mid-bands per channel.
- Lexicon effects engine featuring reverbs, delays, choruses, and modulations.
- dbx limiters (high-ratio compressors) on input channels.
- Switchable Hi-Z inputs for guitars, basses, and other instruments.
- Hi-pass filters (low-cut) and 48V phantom power on all mic channels.
- Comprehensive GB Series audio routing with Auxes (flexible pre/post switching) and subgroups with switching and dedicated outputs.
- Smooth faders.
- Robust metal construction for tour-grade build quality and reliability.
- Internal universal power supply.
| Frequency Response | Mic / Line In to Any Output: 20 Hz to 20 kHz (±1.5 dB) |
|---|---|
| THD | Mono Mic Sensitivity -30 dBu, Input Level -16 dBu, +14 dBu @ Mix Output: < 0.002% @ 1 kHz Stereo Mic Sensitivity -30 dBu, Input Level -16 dBu, +14 dBu @ Mix Output: < 0.007% 1 kHz |
| Noise | Mono Mic Input E.I.N. (Max Gain): <-126 dBu (150 Ohm source) Stereo Mic Input E.I.N. (Max Gain): <-124 dBu (150 Ohm source) |
| Crosstalk @ 1 kHz | Channel Mute: >-90 dB Fader Cut-off (rel +10 mark): >-90 dB Aux Send Pots Offness: >-82 dB |
| EQ Section | EQ (Mono Inputs) HF: 12 kHz, ±15 dB MF (swept): 140 Hz to 3 kHz, ±15 dB LF: 60 Hz, ±15dB EQ (Stereo Inputs) HF: 12 kHz, ±15 dB MF: 1 kHz, ±15 dB LF: 60 Hz, ±15 dB EQ (Stereo inputs) HF: 12 kHz, +/-15 dB MF: 1 kHz, +/-15 dB LF: 60 Hz, +/-15 dB |
| Input and Output | Input and Output Levels Mic Input: +12.5 dBu max Line Input: >+26 dBu max Stereo Inputs: >+26 dBu max Mix Output: +21.5 dBu max Headphones (@ 150 Ohms): 300 mW |
| Impedance | Input & Output Impedance Mic Input: 1.2 kOhms Hi-Z Input: 968 kOhms Line Input: 10 kOhms Stereo Input: 21.5 kOhms Outputs: 150 Ohms (balanced), 75 Ohms (unbalanced) |
| USB Audio | Inputs/Outputs: 14-in, 12-out Bit Depth: 16-bit, 24-bit Sampling Rate: 44.1 kHz / 48 kHz |
| Dimensions | 19.3 x 17.9 x 8.3" / 49.0 x 45.5 x 21.0 cm |
| Weight | 12.9 lb / 5.9 kg |
| Package weight | 16.35 lb |
| Box dimensions lxwxh | 19.2 x 17.9 x 8.3" |
In The Box
- Soundcraft Signature 12 MTK 12-Input Multitrack Mixer with Effects.
- Power Cord.
